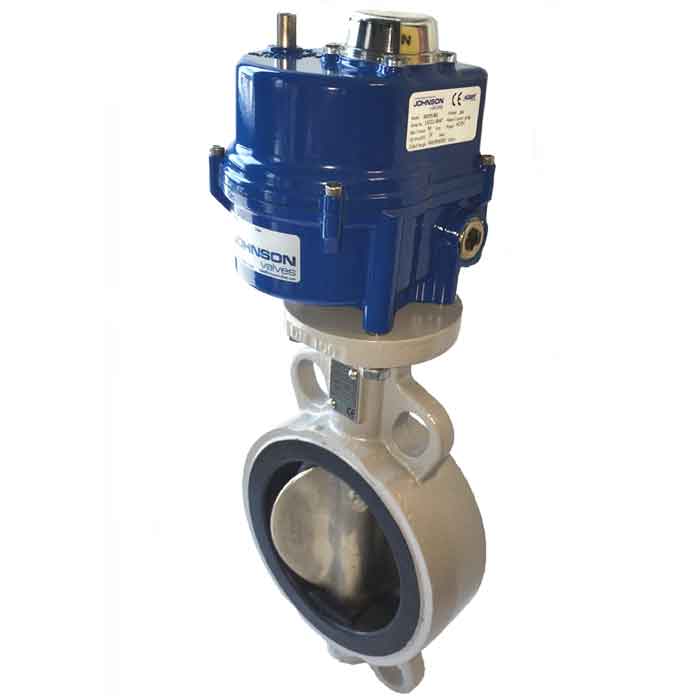

JV240018 – Electrically Actuated Wafer Flange Butterfly Valve – EPDM Lined

A wafer pattern butterfly valve with a ductile iron body, stainless steel disc and an EPDM liner suitable for water duties. Supplied completely assembled with a JV-E Electric Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Electrically Operated
Size & Connections
DN40 to DN300 • PN6/10/16, ANSI150 & JIS 5/10/16K Flange
Duty
Water
Materials
Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-15°C to 120°C
Compliance & Approvals
3.1 Cert (on request) • EN558-1 Series 13 • Actuator Functionality Certificate
