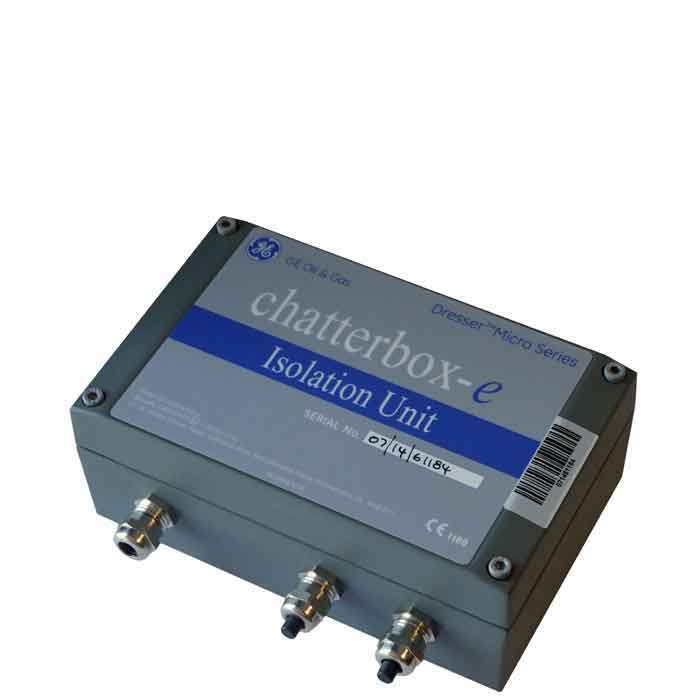

103 – Pulse Chatterbox Intrinsically Safe Opto-Isolation Unit

The Chatterbox unit provides the necessary safety isolation between equipment generating pulses in the hazardous area and non-intrinsically safe equipment located in the safe area. The unit must be installed in the safe area and is suitable for connection to equipment in hazardous areas Zone 0, 1 or 2.

Intrinsic Safety
BASEEFA 05 ATEX 0429 II(1) G [EEx ia] IIC
Output
4 x channels (220ms Pulse, Current-sinking Output up to 20V, 130mA)
Power Supply
Lithium cells giving an estimated life in excess of 10 years
Enclosure
Weatherproof aluminium enclosure IP66 (equivalent to : NEMA 4x) rated
