Pneumatically Actuated Ball Valves

A range of ball valves supplied completely assembled with pneumatic single acting (spring return) or double acting actuators. All valve and actuator packages are tested and issued with certification confirming the actuators functionality before despatch.

Material

Brass Body MaterialStainless Steel Body MaterialBronze Body MaterialPlastic Body Material

Connections

Threaded ConnectionsFlanged ConnectionsSolvent Weld ConnectionsButt Weld ConnectionsSocket Weld Connections

Actuation

Lever OperatedElectrically ActuatedPneumatically Actuated

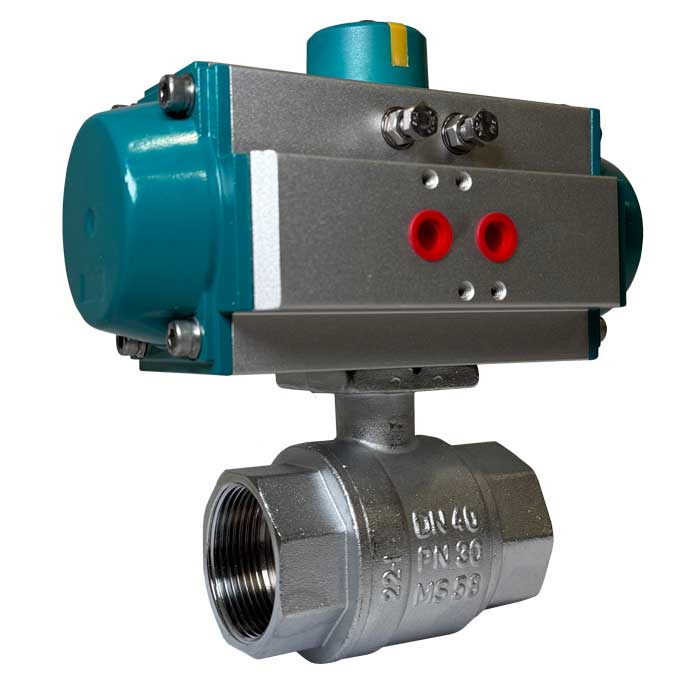

BV90P – Pneumatically Actuated Nickel Plated Brass Ball Valve

Full bore ball valve which is suited for many applications offering reliability at an economical cost. Supplied completely assembled with either a single (spring return) or double-acting VT Pneumatic Actuator.

Type
Two Piece : Full Bore : Pneumatically Actuated (Single or Double Acting)
Size & Connections
6mm (1/4″) to 80mm (3″) BSP Female
Duty
Air : Inert Gas : Oil : Water
Materials
Nickel Plated Brass Body : PTFE Seat : Chrome Plated Brass Ball
Pressure Rating
6-25mm: PN40 : 32-65mm: PN32 : 40-65mm: PN30 : 80mm: PN25
Temperature
-20 to 120°C
Compliance & Approvals
WRAS (15-50mm only) : Actuator Functionality Certificate
Contact us for detailsBV90P - Ball Valve - PDF DatasheetBrass Body MaterialThreaded ConnectionsPneumatically Actuated
WRAS Approved ProductISO5211 Pad Mount

BV90P : Pneumatically Actuated Nickel Plated Brass Ball Valve

BV903P – Pneumatically Actuated Stainless Steel Three Piece Ball Valve

Full bore ball valve which is suited for various applications with a three-piece design for fast and low-cost maintenance. Supplied completely assembled with either a single (spring return) or double-acting VT Pneumatic Actuator.

Type
Three Piece : Full Bore : Pneumatically Actuated (Single or Double Acting)
Size & Connections
6mm (1/4″) to 100mm (4″) BSP Female (NPT, Butt & Socket Weld on request)
Duty
Air : Inert Gas : Oil : Process : Steam : Water
Materials
Stainless Steel Body, Ball & Stem : RPTFE Seat
Pressure Rating
6-25mm: PN82 : 32-40mm: PN69 : 50-100mm: PN62
Temperature
-25 to 200°C (dependent on pressure)
Compliance & Approvals
Actuator Functionality Certificate
Contact us for detailsBV903P - Ball Valve - PDF DatasheetStainless Steel Body MaterialThreaded ConnectionsPneumatically Actuated
ISO5211 Pad Mount

BV903P - Pneumatically Actuated Stainless Steel Three Piece Ball Valve

BV903FSP – Pneumatically Actuated Stainless Steel Fire Safe Ball Valve

Full bore for minimal headloss ball valve suited for various heavy duty applications and is of a fire safe design. Supplied completely assembled with either a single (spring return) or double-acting VT Pneumatic Actuator.

Type
Three Piece : Full Bore : Blow-out Proof Stem : Anti-Static : Pneumatically Actuated
Size & Connections
6mm (1/4″) to 100mm (4″) BSP Female (Butt & Socket Weld on request)
Duty
Air : Inert Gas : Oil : Process : Steam : Water
Materials
Stainless Steel Body, Ball & Stem : CTFE Seat
Pressure Rating
6-25mm: PN150 : 32-40mm: PN69 : 50-100mm: PN62
Temperature
-25 to 200°C (dependent on pressure)
Compliance & Approvals
Fire-safe approved to API 607 4th edition : Actuator Functionality Certificate
Contact us for detailsBV903FSP - Ball Valve - PDF DatasheetStainless Steel Body MaterialThreaded ConnectionsPneumatically Actuated
Fire Safe Approved to API 607 4th editionISO5211 Pad Mount

BV903FSP - Pneumatically Actuated Stainless Steel Fire Safe Ball Valve

BV987P & BV988P – Pneumatically Actuated Stainless Steel Three Way Ball Valve

Suitable for various diversion and isolation applications, available with either “L” ported or “T” ported configurations. Supplied completely assembled with either a single (spring return) or double-acting VT Pneumatic Actuator.

Type
Three Way : L-Ported or T-Ported : Reduced Bore : Pneumatically Actuated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air : Inert Gas : Oil : Process : Steam : Water
Materials
Stainless Steel Body, Ball & Stem : RPTFE Seat
Pressure Rating
6-25mm: PN82 : 32-40mm: PN69 : 50-100mm: PN30
Temperature
-25 to 220°C (dependent on pressure)
Compliance & Approvals
Actuator Functionality Certificate
Contact us for detailsBV987P & BV988P - Ball Valve - PDF DatasheetStainless Steel Body MaterialThreaded ConnectionsPneumatically Actuated
ISO5211 Pad Mount

BV987P & BV988P - Pneumatically Actuated Stainless Steel Three Way Ball Valve

BV926P – Pneumatically Actuated Stainless Steel Ball Valve, Flanged PN16/40

Full bore ball valve which is suited for many applications offering reliability at an economical cost. Supplied completely assembled with either a single (spring return) or double-acting VT Pneumatic Actuator.

Type
Two Piece : Full Bore : Blow-out Proof Stem : Pneumatically Actuated
Size & Connections
DN15 to DN50 : PN16/40 Flange
Duty
Air : Inert Gas : Oil : Process : Steam : Water
Materials
Stainless Steel Body, Ball & Stem : PTFE Seat
Pressure Rating
15-50mm: PN40 : 65-100mm: PN16
Temperature
-25 to 200°C (dependent on pressure)
Compliance & Approvals
Actuator Functionality Certificate
Contact us for detailsBV926P - Ball Valve - PDF DatasheetStainless Steel Body MaterialFlanged ConnectionsPneumatically Actuated
ISO5211 Pad Mount

BV926P - Pneumatically Actuated Stainless Steel Ball Valve, Flanged PN16/40

BV928P – Pneumatically Actuated Stainless Steel Ball Valve, Flanged ANSI 150

ANSI full bore ball valve which is suited for many applications offering reliability at an economical cost. Supplied completely assembled with either a single (spring return) or double-acting VT Pneumatic Actuator.

Type
Two Piece : Full Bore : Blow-out Proof Stem : Pneumatically Actuated
Size & Connections
DN15 to DN50 : ANSI Class 150
Duty
Air : Inert Gas : Oil : Process : Steam : Water
Materials
Stainless Steel Body, Ball & Stem : PTFE Seat
Pressure Rating
Class 150
Temperature
-25 to 200°C (dependent on pressure)
Compliance & Approvals
Actuator Functionality Certificate
Contact us for detailsBV928P - Ball Valve - PDF DatasheetStainless Steel Body MaterialFlanged ConnectionsPneumatically Actuated
ISO5211 Pad Mount

BV928P - Pneumatically Actuated Stainless Steel Ball Valve, Flanged ANSI 150
