Marine Ball Valves

Marine ball valves with materials compatible with marine and offshore environments. Type approvals and material certification from classification societies such as Lloyds, BV and DNV-GL are available on request with selected valves from our range.

JV090002 – DZR Brass Ball Valve

A WRAS approved (Isis range) economical and versatile full bore ball valve suitable for water and marine applications. Manually operated, supplied with a lever.

Type
Two-Piece • Full Bore • Lever Operated
Size & Connections
6mm (1/4″) to 50mm (2″) BSP Female
Duty
Air • Gas • Oil • Water
Materials
DZR Brass Body • PTFE Seat • Chrome Plated Brass Ball
Pressure Rating
6-10mm PN50 • 15-50mm PN25
Temperature
-15°C to 120°C (Dependent on pressure)
Compliance & Approvals
WRAS • DNV GL Type Approved
Buy JV090002 - DZR Brass Ball ValveJV090002 - DZR Brass Ball Valve- PDF DatasheetWRAS Approved ProductDNV Germanischer Lloyd Type Approved

JV090002 - DZR Brass Ball Valve

JV090011 – Two-Piece Bronze Ball Valve, ISO 5211 Direct Mount, Flanged PN16

The materials make this valve particularly suitable for marine duties as well as many other applications. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN200 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Bronze Body • Stainless Steel Ball • PTFE Seat
Pressure Rating
PN16
Temperature
0°C to 180°C (Dependent on size & pressure)
Compliance & Approvals
3.1 & 3.2 Material Certification (available on request)
Contact UsJV090011 – Two-Piece Bronze Ball Valve - ISO 5211 Direct Mount, Flanged PN16 - PDF Datasheet3.1 & 3.2 Material Certification (available on request)ISO5211 Pad Mount

JV090011 – Two-Piece Bronze Ball Valve - ISO 5211 Direct Mount, Flanged PN16

JV090003 – One-Piece Stainless Steel Ball Valve

A compact and versatile one-piece stainless steel ball valve suitable for a wide range of isolation applications. The valve is lockable in the open and closed position. Manually operated, supplied with a lever.

Type
One-Piece • Reduced Bore • Lever Operated • Blow-out Proof Stem
Size & Connections
6mm (1/4″) to 100mm (4″) BSP Female
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Buy JV090003 – One-Piece Stainless Steel Ball ValveJV090003 – One-Piece Stainless Steel Ball Valve - PDF Datasheet

JV090003 – One-Piece Stainless Steel Ball Valve

JV090004 – Two-Piece Stainless Steel Ball Valve

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. The valve is lockable in the open and closed position. Manually operated, supplied with a lever.

Type
Two-Piece • Full Bore • Lever Operated • Blow-out Proof Stem
Size & Connections
6mm (1/4″) to 100mm (4″) BSPP Female
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Buy JV090004 - Two-Piece Stainless Steel Ball ValveJV090004 - Two-Piece Stainless Steel Ball Valve - PDF Datasheet

JV090004 - Two-Piece Stainless Steel Ball Valve

JV090005 – Three-Piece Stainless Steel Ball Valve

A versatile and robust three-piece stainless steel ball valve suitable for a wide range of isolation applications. The valve is lockable in the open and closed position. Manually operated, supplied with a lever.

Type
Three-Piece • Full Bore • Lever Operated • Blow-out Proof Stem
Size & Connections
6mm (1/4″) to 100mm (4″) BSPP Female • Butt & Socket Weld (on request)
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Buy JV090005 - Three-Piece Stainless Steel Ball Valve JV090005 - Three-Piece Stainless Steel Ball Valve - PDF Datasheet

JV090005 - Three-Piece Stainless Steel Ball Valve

JV090006 – Stainless Steel Fire Safe Ball Valve, ISO 5211 Direct Mount

A high performance, fire-safe stainless steel bodied full bore ball valve suitable for various heavy duty applications with an ISO 5211 mounting pad enabling the valve to be fitted with various actuation options. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Fire Safe
Size & Connections
15mm (1/2″) to 80mm (3″) BSP Female • Butt & Socket Weld (on request)
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • CTFE Seat
Pressure Rating
15-25mm PN138 • 32-50mm PN103 • 65-80mm PN63
Temperature
-20°C to 220°C (Dependent on pressure)
Compliance & Approvals
Fire Safe API 607 4th edition and anti-static •  Lloyds, BV & DNV GL Type Approved
Contact UsJV090006 – Stainless Steel Fire Safe Ball Valve - ISO 5211 Direct Mount - PDF DatasheetFire Safe Approved to API 607 4th EditionISO5211 Pad Mount

JV090006 – Stainless Steel Fire Safe Ball Valve - ISO 5211 Direct Mount

JV090018 – Stainless Steel Ball Valve, Flanged PN16

A full-bore, two-piece general purpose stainless steel ball valve with PN16 flanges. The valve is lockable in the open and closed position. Manually operated, supplied with a lever.

Type
Two-Piece • Full Bore • Blow-out Proof Stem
Size & Connections
DN15 to DN50 • PN16 Flange
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN16
Temperature
-25 to 200°C (Dependent on pressure)
Buy JV090018 - Stainless Steel Ball Valve, Flanged PN16JV090018 - Stainless Steel Ball Valve, Flanged PN16 - PDF Datasheet

JV090018 - Stainless Steel Ball Valve, Flanged PN16

JV090019 – Two-Piece Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged PN16/40

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN200 • PN16/40 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
15-50mm PN40 • 65-200mm PN16
Temperature
-25°C to 200°C (Dependent on size & pressure)
Compliance & Approvals
ATEX II 2 GD c T2 Non-electrical Valves
Contact UsJV090019 – Two-Piece Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16/40 - PDF DatasheetATEX Approved ProductISO5211 Pad Mount

JV090019 – Two-Piece Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16/40

JV090017 – Fire Safe Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged PN16/40

A high performance, fire-safe stainless steel bodied full bore ball valve suitable for various heavy duty applications with an ISO 5211 mounting pad enabling the valve to be fitted with various actuation options. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Fire Safe
Size & Connections
DN15 to DN250 • PN16/40 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • TFM1600 Seat
Pressure Rating
15-50mm PN40 • 65-250mm PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Compliance & Approvals
Fire Safe API 607 4th edition & anti-static • ATEX II 2 GD c T2 Non-electrical Valves
Contact UsJV090017 – Stainless Steel Fire Safe Ball Valve - ISO 5211 Direct Mount, Flanged PN16/40 - PDF DatasheetATEX Approved ProductFire Safe Approved to API 607 4th Edition
ISO5211 Pad Mount

JV090017 – Stainless Steel Fire Safe Ball Valve, ISO 5211 Direct Mount, Flanged PN16/40

JV090020 – Three-Way L-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged PN16

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV090020 – Three-Way L-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16- PDF DatasheetISO5211 Pad Mount

JV090020 – Three-Way L-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16

JV090021 – Three-Way T-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged PN16

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV090021 – Three-Way T-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16- PDF DatasheetISO5211 Pad Mount

JV090021 – Three-Way T-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16

JV090009 – Stainless Steel Ball Valve, Flanged ANSI 150

A full-bore, two-piece general purpose stainless steel ball valve with ANSI 150 flanges. The valve is lockable in the open and closed position. Manually operated, supplied with a lever.

Type
Two Piece • Full Bore • Blow-out Proof Stem
Size & Connections
DN15 to DN250 • ANSI 150 Flange
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
20 Bar (12 Bar for steam)
Temperature
-20 to 200°C (dependent on pressure)
Compliance & Approvals
ASME B16.10
Contact us for detailsJV090009 - Stainless Steel Ball Valve, Flanged ANSI 150 - PDF Datasheet

JV090009 - Stainless Steel Ball Valve, Flanged ANSI 150

JV090010 – Two-Piece Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN100 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
20 Bar (12 Bar for steam)
Temperature
-25°C to 200°C (Dependent on pressure)
Compliance & Approvals
ATEX II 2 GD c T2 Non-electrical Valves • ASME B16.10
Contact UsJV090010 – Two-Piece Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150 - PDF DatasheetATEX Approved ProductISO5211 Pad Mount

JV090010 – Two-Piece Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

JV090022 – Three-Way L-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV090022 – Three-Way L-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150- PDF DatasheetISO5211 Pad Mount

JV090022 – Three-Way L-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

JV090023 – Three-Way T-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV090023 – Three-Way T-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150- PDF DatasheetISO5211 Pad Mount

JV090023 – Three-Way T-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

JV090012 – Two-Piece Bronze Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

The materials make this valve particularly suitable for marine duties as well as many other applications. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN200 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Bronze Body • Stainless Steel Ball • PTFE Seat
Pressure Rating
16 Bar
Temperature
0°C to 180°C (Dependent on pressure)
Compliance & Approvals
3.1 & 3.2 Material Certification (available on request)
Contact UsJV090012 – Two-Piece Bronze Ball Valve - ISO 5211 Direct Mount, Flanged ANSI 150 - PDF Datasheet3.1 & 3.2 Material Certification (available on request)ISO5211 Pad Mount

JV090012 – Two-Piece Bronze Ball Valve - ISO 5211 Direct Mount, Flanged ANSI 150 - PDF Datasheet

JV240008 – Electrically Actuated Three-Piece Stainless Steel Ball Valve

A versatile and robust three-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPP Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240008 – Electrically Actuated Three-Piece Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV240008 – Electrically Actuated Three-Piece Stainless Steel Ball Valve

JV241003 – Electrically Actuated (Spring Return) Three-Piece Stainless Steel Ball Valve

A versatile and robust three-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a SRFA-R Electric Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Electrically Operated (Spring Return)
Size & Connections
6mm (1/4″) to 40mm (1 1/2″) BSPP Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV241003 – Electrically Actuated (Spring Return) Three-Piece Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV241003 – Electrically Actuated (Spring Return) Three-Piece Stainless Steel Ball Valve

JV240020 – Pneumatically Actuated Three-Piece Stainless Steel Ball Valve

A versatile and robust three-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPP Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240020 – Pneumatically Actuated Three-Piece Stainless Steel Ball Valve - PDF DatasheetPneumatically Actuated

JV240020 – Pneumatically Actuated Three-Piece Stainless Steel Ball Valve

JV240009 – Electrically Actuated Fire Safe Stainless Steel Ball Valve

A high performance, fire-safe stainless steel bodied full bore ball valve suitable for various heavy duty applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Fire Safe • Electrically Operated
Size & Connections
15mm (1/2″) to 100mm (3″) BSP Female • Butt & Socket Weld (on request)
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • CTFE Seat
Pressure Rating
15-25mm PN138 • 32-50mm PN103 • 65-80mm PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240009 – Electrically Actuated Fire Safe Stainless Steel Ball Valve - PDF DatasheetFire Safe Approved to API 607 4th EditionElectrically Actuated

JV240009 – Electrically Actuated Fire Safe Stainless Steel Ball Valve

JV240021 – Pneumatically Actuated Fire Safe Stainless Steel Ball Valve

A high performance, fire-safe stainless steel bodied full bore ball valve suitable for various heavy duty applications. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Fire Safe • Electrically Operated
Size & Connections
15mm (1/2″) to 100mm (3″) BSP Female • Butt & Socket Weld (on request)
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • CTFE Seat
Pressure Rating
15-25mm PN138 • 32-50mm PN103 • 65-80mm PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240021 – Pneumatically Actuated Fire Safe Stainless Steel Ball Valve - PDF DatasheetFire Safe Approved to API 607 4th EditionPneumatically Actuated

JV240021 – Pneumatically Actuated Fire Safe Stainless Steel Ball Valve

JV240011 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240011 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV240011 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve

JV240023 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240023 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve - PDF DatasheetPneumatically Actuated

JV240023 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve

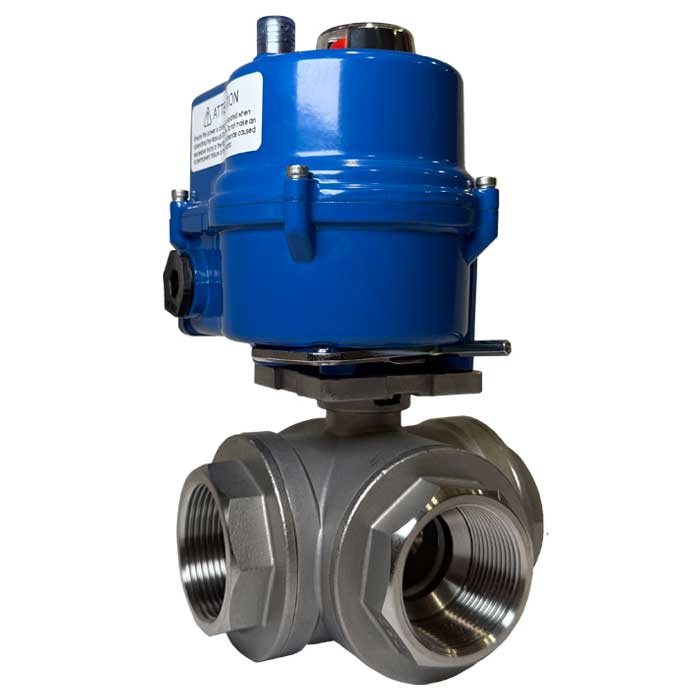

JV240010 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240010 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV240010 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve

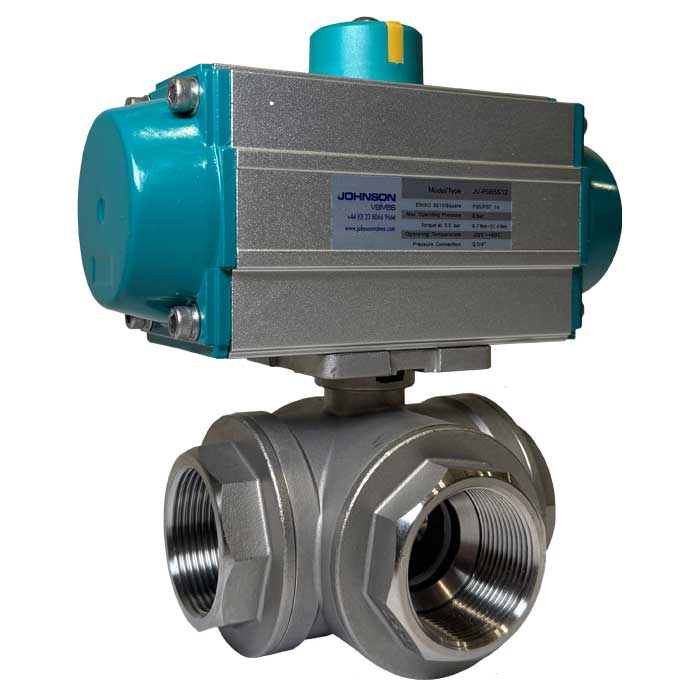

JV240022 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240022 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve - PDF DatasheetPneumatically Actuated

JV240022 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve

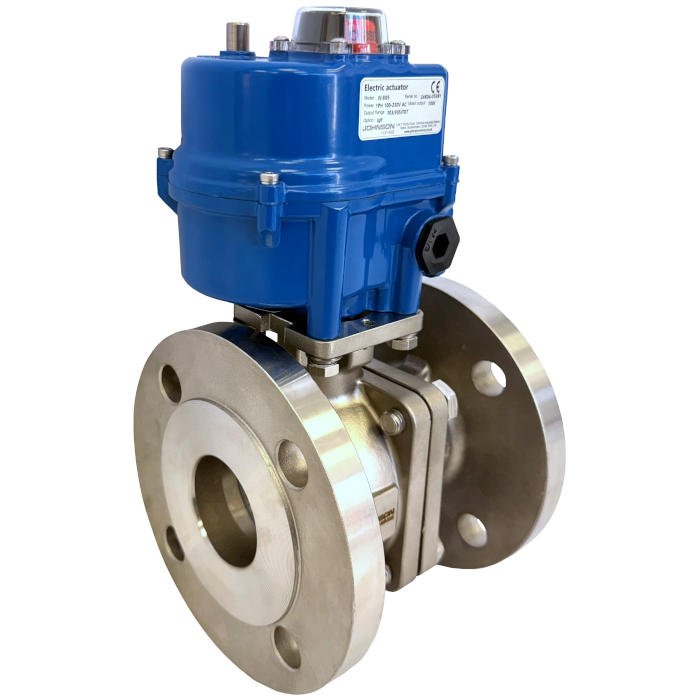

JV240012 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN200 • PN16/40 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
15-50mm PN40 • 65-200mm PN16
Temperature
-25°C to 200°C (Dependent on size & pressure)
Contact UsJV240012 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40 - PDF DatasheetElectrically Actuated

JV240012 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40

JV240024 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN200 • PN16/40 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
15-50mm PN40 • 65-200mm PN16
Temperature
-25°C to 200°C (Dependent on size & pressure)
Contact UsJV240024 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40 - PDF DatasheetPneumatically Actuated

JV240024 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40

JV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16 - PDF DatasheetElectrically Actuated

JV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

JV240037 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240037 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16 - PDF DatasheetPneumatically Actuated

JV240037 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

JV240034 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240034 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16 - PDF DatasheetElectrically Actuated

JV240034 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16

JV240038 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240038 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16 - PDF DatasheetPneumatically Actuated

JV240038 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16

JV240013 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN100 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
20 Bar (12 Bar for steam)
Temperature
-25°C to 200°C (Dependent on pressure)
Contact UsJV240013 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetElectrically Actuated

JV240013 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150

JV240025 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN100 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
20 Bar (12 Bar for steam)
Temperature
-25°C to 200°C (Dependent on pressure)
Contact UsJV240025 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetPneumatically Actuated

JV240025 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150

JV240035 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240035 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetElectrically Actuated

JV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

JV240039 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240039 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetPneumatically Actuated

JV240039 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150

JV240036 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240036 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetElectrically Actuated

JV240036 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150

JV240040 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240040 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetPneumatically Actuated

JV240040 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150
