JIS is the Japanese standard within the valve industry, we can offer JIS butterfly vales, check valves, gate valves, globe valves and storm valves for the industrial, marine and offshore industries.
JIS Valves
Butterfly Valves
Check Valves
Gate Valves
Globe Valves
Storm Valves
F7301 – Bronze JIS 5K Marine Globe Valve
Bronze metal seated globe valve to JIS Japanese specifications. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Lift • Secured Screwed Bonnet (15-40mm) • Rising Stem
Size & Connections
DN15 to DN65 • JIS-5K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Bronze Body • Bronze/Brass Bonnet & Stem • Bronze/Brass Disc
Pressure Rating
Up to 7 Bar (dependent on application)
Temperature
Up to 205°C
Compliance & Approvals
JIS-5K • 3.1 & 3.2 Material Certification (available on request)
F7302 – Bronze JIS 5K Marine Angle Globe Valve
Bronze metal seated angled globe valve to JIS Japanese specifications. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Lift • Secured Screwed Bonnet (15-40mm) • Rising Stem • Angle
Size & Connections
DN15 to DN65 • JIS-5K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Bronze Body • Bronze/Brass Bonnet & Stem • Bronze/Brass Disc
Pressure Rating
Up to 7 Bar (dependent on application)
Temperature
Up to 205°C
Compliance & Approvals
JIS-5K • 3.1 & 3.2 Material Certification (available on request)
F7351 – Bronze JIS 5K Marine SDNR Globe Valve
Bronze metal seated globe valve to JIS Japanese specifications with a non-return design, preventing reverse flow when in the open position, also suitable for isolation duty. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Down Non-Return • Secured Screwed Bonnet (15-40mm) • Rising Stem
Size & Connections
DN15 to DN65 • JIS-5K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Bronze Body • Bronze/Brass Bonnet & Stem • Bronze/Brass Disc
Pressure Rating
Up to 7 Bar (dependent on application)
Temperature
Up to 205°C
Compliance & Approvals
JIS-5K • 3.1 & 3.2 Material Certification (available on request)
F7352 – Bronze JIS 5K Marine SDNR Angle Globe Valve
Bronze metal seated angled globe valve to JIS Japanese specifications with a non-return design, preventing reverse flow when in the open position, also suitable for isolation duty. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Down Non-Return • Secured Screwed Bonnet (15-40mm) : Rising Stem • Angle
Size & Connections
DN15 to DN65 • JIS-5K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Bronze Body • Bronze/Brass Bonnet & Stem • Bronze/Brass Disc
Pressure Rating
Up to 7 Bar (dependent on application)
Temperature
Up to 205°C
Compliance & Approvals
JIS-5K • 3.1 & 3.2 Material Certification (available on request)
F7303 – Bronze JIS 16K Marine Globe Valve
Bronze metal seated globe valve to JIS Japanese specifications. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Lift • Secured Screwed Bonnet • Rising Stem
Size & Connections
DN15 to DN40 • JIS-16K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Bronze Body • Bronze/Brass Bonnet & Stem • Bronze/Brass Disc
Pressure Rating
Up to 22 Bar (dependent on application)
Temperature
Up to 205°C
Compliance & Approvals
JIS-16K • 3.1 & 3.2 Material Certification (available on request)
F7304 – Bronze JIS 16K Marine Angle Globe Valve
Bronze metal seated angled globe valve to JIS Japanese specifications. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Lift • Secured Screwed Bonnet • Rising Stem • Angle
Size & Connections
DN15 to DN40 • JIS-16K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Bronze Body • Bronze/Brass Bonnet & Stem • Bronze/Brass Disc
Pressure Rating
Up to 22 Bar (dependent on application)
Temperature
Up to 205°C
Compliance & Approvals
JIS-16K • 3.1 & 3.2 Material Certification (available on request)
F7409 – Bronze JIS 16K Marine SDNR Globe Valve
Bronze metal seated globe valve to JIS Japanese specifications with a non-return design, preventing reverse flow when in the open position, also suitable for isolation duty. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Down Non-Return • Secured Screwed Bonnet • Rising Stem
Size & Connections
DN15 to DN40 • JIS-16K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Bronze Body • Bronze/Brass Bonnet & Stem • Bronze/Brass Disc
Pressure Rating
Up to 22 Bar (dependent on application)
Temperature
Up to 205°C
Compliance & Approvals
JIS-16K • 3.1 & 3.2 Material Certification (available on request)
F7410 – Bronze JIS 16K Marine SDNR Angle Globe Valve
Bronze metal seated angled globe valve to JIS Japanese specifications with a non-return design, preventing reverse flow when in the open position, also suitable for isolation duty. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Down Non-Return • Secured Screwed Bonnet • Rising Stem • Angle
Size & Connections
DN15 to DN40 • JIS-16K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Bronze Body • Bronze/Brass Bonnet & Stem • Bronze/Brass Disc
Pressure Rating
Up to 22 Bar (dependent on application)
Temperature
Up to 205°C
Compliance & Approvals
JIS-16K • 3.1 & 3.2 Material Certification (available on request)
F7311 – Cast Steel JIS 5K Globe Valve
Cast Steel globe valve with a bronze or stainless steel disc and seat to JIS 5K Japanese specifications. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Lift • Bolted Bonnet • Rising Stem
Size & Connections
DN50 to DN300 • JIS-5K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Cast Steel Body • Stainless Steel / Brass Stem • Stainless Steel / Bronze Disc & Seat
Pressure Rating
Up to 7 Bar (dependent on application)
Temperature
Up to 205°C
Compliance & Approvals
JIS-5K • 3.1 & 3.2 Material Certification (available on request)
F7312 – Cast Steel JIS 5K Angle Globe Valve
Cast Steel globe valve with a bronze or stainless steel disc and seat to JIS 5K Japanese specifications. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Lift • Bolted Bonnet • Rising Stem • Angle
Size & Connections
DN50 to DN400 • JIS-5K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Cast Steel Body • Stainless Steel / Brass Stem • Stainless Steel / Bronze Disc & Seat
Pressure Rating
Up to 7 Bar (dependent on application)
Temperature
Up to 205°C
Compliance & Approvals
JIS-5K • 3.1 & 3.2 Material Certification (available on request)
F7319 – Cast Steel JIS 10K Globe Valve
Cast Steel globe valve with a bronze or stainless steel disc and seat to JIS 10K Japanese specifications. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Lift • Bolted Bonnet • Rising Stem
Size & Connections
DN50 to DN300 • JIS-10K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Cast Steel Body • Stainless Steel / Brass Stem • Stainless Steel / Bronze Disc & Seat
Pressure Rating
Up to 14 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-10K • 3.1 & 3.2 Material Certification (available on request)
F7320 – Cast Steel JIS 10K Angle Globe Valve
Cast Steel globe valve with a bronze or stainless steel disc and seat to JIS 10K Japanese specifications. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Lift • Bolted Bonnet • Rising Stem • Angle
Size & Connections
DN50 to DN400 • JIS-10K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Cast Steel Body • Stainless Steel / Brass Stem • Stainless Steel / Bronze Disc & Seat
Pressure Rating
Up to 14 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-10K • 3.1 & 3.2 Material Certification (available on request)
F7471 – Cast Steel JIS 10K SDNR Globe Valve
JIS 10K cast steel globe valve with a non-return design, preventing reverse flow when in the open position, also suitable for isolation duty. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Down Non-Return (SDNR) • Bolted Bonnet • Rising Stem
Size & Connections
DN50 to DN200 • JIS-10K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Cast Steel Body • Stainless Steel / Brass Stem • Stainless Steel / Bronze Disc & Seat
Pressure Rating
Up to 14 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-10K • 3.1 & 3.2 Material Certification (available on request)
F7472 – Cast Steel JIS 10K SDNR Angle Globe Valve
JIS 10K cast steel globe valve with a non-return design, preventing reverse flow when in the open position, also suitable for isolation duty. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Down Non-Return (SDNR) • Bolted Bonnet • Rising Stem • Angle
Size & Connections
DN50 to DN200 • JIS-10K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Cast Steel Body • Stainless Steel / Brass Stem • Stainless Steel / Bronze Disc & Seat
Pressure Rating
Up to 14 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-10K • 3.1 & 3.2 Material Certification (available on request)
F7313 – Cast Steel JIS 20K Globe Valve
Cast Steel globe valve with a bronze or stainless steel disc and seat to JIS 20K Japanese specifications. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Lift • Bolted Bonnet • Rising Stem
Size & Connections
DN50 to DN300 • JIS-20K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Cast Steel Body • Stainless Steel / Brass Stem • Stainless Steel / Bronze Disc & Seat
Pressure Rating
Up to 34 Bar (dependent on temperature)
Temperature
Up to 220°C
Compliance & Approvals
JIS-20K • 3.1 & 3.2 Material Certification (available on request)
F7314 – Cast Steel JIS 20K Angle Globe Valve
Cast Steel globe valve with a bronze or stainless steel disc and seat to JIS 20K Japanese specifications. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Lift • Bolted Bonnet • Rising Stem • Angle
Size & Connections
DN50 to DN400 • JIS-20K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Cast Steel Body • Stainless Steel / Brass Stem • Stainless Steel / Bronze Disc & Seat
Pressure Rating
Up to 34 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-20K • 3.1 & 3.2 Material Certification (available on request)
F7473 – Cast Steel JIS 20K SDNR Globe Valve
JIS 20K cast steel globe valve with a non-return design, preventing reverse flow when in the open position, also suitable for isolation duty. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Down Non-Return (SDNR) • Bolted Bonnet • Rising Stem
Size & Connections
DN32 to DN250 • JIS-20K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Cast Steel Body • Stainless Steel / Brass Stem • Stainless Steel / Bronze Disc & Seat
Pressure Rating
Up to 34 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-20K • 3.1 & 3.2 Material Certification (available on request)
F7474 – Cast Steel JIS 20K SDNR Angle Globe Valve
JIS 20K cast steel globe valve with a non-return design, preventing reverse flow when in the open position, also suitable for isolation duty. Class society inspection and 3.1 material certification can be arranged on request.
Type
Screw Down Non-Return (SDNR) • Bolted Bonnet • Rising Stem • Angle
Size & Connections
DN32 to DN250 • JIS-20K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Cast Steel Body • Stainless Steel / Brass Stem • Stainless Steel / Bronze Disc & Seat
Pressure Rating
Up to 34 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-20K • 3.1 & 3.2 Material Certification (available on request)

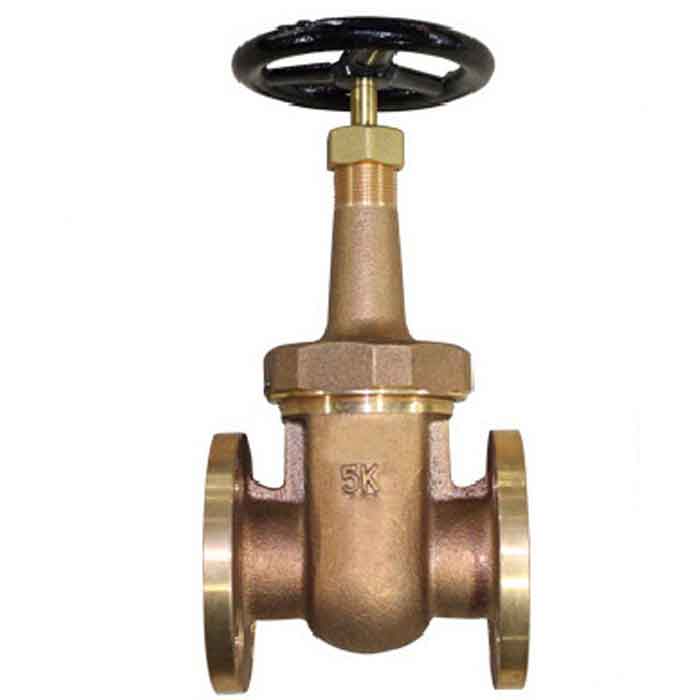

F7367 – Bronze JIS 5K Marine Gate Valve
Non rising stem, metal seated gate valve to JIS 5K Japanese specifications, suitable for cold and hot water, seawater, saturated steam, oil and other neutral non aggressive liquids. Lloyds, B.V., DNV, Germanischer Lloyds Inspection and 3.1 material certification can be arranged on request.
Type
Union Bonnet • Wedge • Inside Screw & Non-Rising Stem
Size & Connections
DN15 to DN50 • JIS-5K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Bronze Body & Bonnet • Special Brass Stem • Bronze Wedge
Pressure Rating
Up to 7 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-5K • 3.1 & 3.2 Material Certification (available on request)
F7368 – Bronze JIS 10K Marine Gate Valve
Non rising stem, metal seated gate valve to JIS 10K Japanese specifications, suitable for cold and hot water, seawater, saturated steam, oil and other neutral non aggressive liquids. Lloyds, B.V., DNV, Germanischer Lloyds Inspection and 3.1 material certification can be arranged on request.
Type
Union Bonnet • Wedge • Inside Screw & Non-Rising Stem
Size & Connections
DN15 to DN50 • JIS-10K Flange
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Bronze Body & Bonnet • Special Brass Stem • Bronze Wedge
Pressure Rating
Up to 14 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-10K • 3.1 & 3.2 Material Certification (available on request)
F7363 – Cast Iron JIS 5K Gate Valve
Non rising stem, metal seated gate valve to JIS 5K Japanese specifications, suitable for cold and hot water, saturated steam, oil and other neutral non aggressive liquids. Lloyds, B.V., DNV, Germanischer Lloyds Inspection and 3.1 material certification can be arranged on request.
Type
Bolted Bonnet • Wedge • Inside Screw & Non-Rising Stem
Size & Connections
DN50 to DN400 • JIS-5K Flange
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Cast Iron Body & Bonnet • Brass / St. Steel Stem • Bronze / St. Steel Seat & Ring
Pressure Rating
Up to 7 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-5K
F7364 – Cast Iron JIS 10K Gate Valve
Non rising stem, metal seated gate valve to JIS 10K Japanese specifications, suitable for cold and hot water, saturated steam, oil and other neutral non aggressive liquids. Lloyds, B.V., DNV, Germanischer Lloyds Inspection and 3.1 material certification can be arranged on request.
Type
Bolted Bonnet • Wedge • Inside Screw & Non-Rising Stem
Size & Connections
DN50 to DN400 • JIS-10K Flange
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Cast Iron Body & Bonnet • Brass / St. Steel Stem • Bronze / St. Steel Seat & Ring
Pressure Rating
Up to 14 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-10K

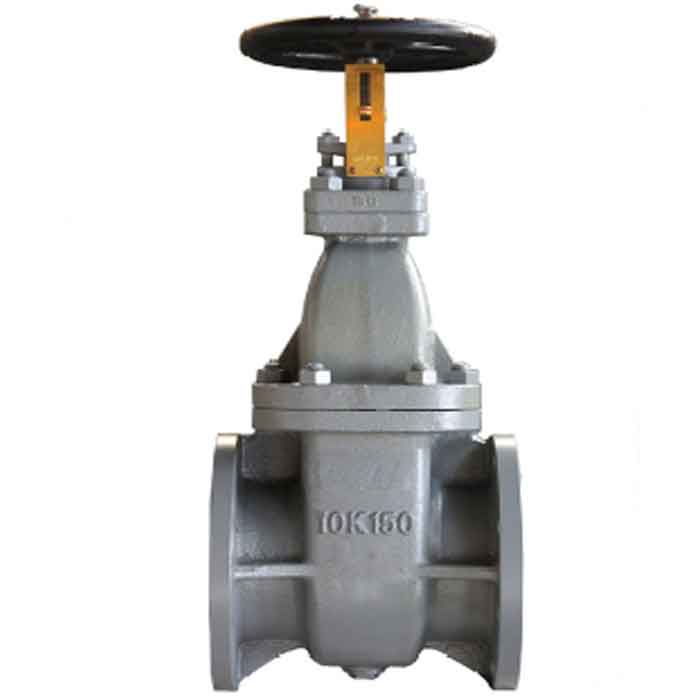

F7366 – Cast Steel JIS 10K Gate Valve
Non rising stem, metal seated gate valve to JIS 10K Japanese specifications, suitable for cold and hot water, saturated steam, oil and other neutral non aggressive liquids. Lloyds, B.V., DNV, Germanischer Lloyds Inspection and 3.1 material certification can be arranged on request.
Type
Bolted Bonnet • Wedge • Inside Screw & Non-Rising Stem
Size & Connections
DN50 to DN400 • JIS-10K Flange
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Cast Steel Body & Bonnet • Brass / Stainless Steel Stem • Bronze Seat & Ring
Pressure Rating
Up to 14 Bar (dependent on application)
Temperature
Up to 220°C
Compliance & Approvals
JIS-10K • 3.1 & 3.2 Material Certification (available on request)
F7371 – Bronze JIS 5K Swing (Flapper) Check Valve (Non-Return) Valve
A bronze swing type (flapper) type check (non-return) valve with a bronze disc conforming JIS 5K Japanese specifications. It can be fitted in the horizontal position or in the vertical position with the flow going upwards.
Type
Swing (Flapper)
Size & Connections
DN50 to DN125 • JIS-5K Flange
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Bronze Body & Disc
Pressure Rating
Up to 7 Bar (dependent on application)
Temperature
Up to 120°C
Compliance & Approvals
JIS-5K • 3.1 Material Certification (available on request)
F7356 – Bronze JIS 5K Lift Check Valve (Non-Return) Valve
A bronze lift type check (non-return) valve with a bronze disc conforming JIS 5K Japanese specifications. It must be fitted in the horizontal position.
Type
Lift
Size & Connections
DN15 to DN40 • JIS-5K Flange
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Bronze Body & Disc
Pressure Rating
Up to 7 Bar (dependent on application)
Temperature
Up to 120°C
Compliance & Approvals
JIS-5K • 3.1 Material Certification (available on request)
F7372 – Cast Iron JIS 5K Swing (Flapper) Check Valve (Non-Return) Valve
A cast iron swing type (flapper) type check (non-return) valve with a bronze disc conforming JIS 5K Japanese specifications. It can be fitted in the horizontal position or in the vertical position with the flow going upwards.
Type
Swing (Flapper)
Size & Connections
DN50 to DN250 • JIS-5K Flange
Duty
Air • Inert Gas • Oil • Water
Materials
Cast Iron Body • Bronze / Stainless Steel Seat Ring & Disc
Pressure Rating
Up to 7 Bar (dependent on application)
Temperature
Up to 120°C
Compliance & Approvals
JIS-5K
F7373 – Cast Iron JIS 10K Swing (Flapper) Check Valve (Non-Return) Valve
A cast iron swing type (flapper) type check (non-return) valve with a bronze disc conforming JIS 10K Japanese specifications. It can be fitted in the horizontal position or in the vertical position with the flow going upwards.
Type
Swing (Flapper)
Size & Connections
DN50 to DN200 • JIS-10K Flange
Duty
Air • Inert Gas • Oil • Water
Materials
Cast Iron Body • Bronze / Stainless Steel Seat Ring & Disc
Pressure Rating
Up to 14 Bar (dependent on application)
Temperature
Up to 120°C
Compliance & Approvals
JIS-10K
F3059 – Cast Steel Straight (Vertical) Storm Valve c/w Closing Device – JIS Specifications
The F3059 is a straight storm valve with a closing device, it is generally used in sanitary discharge pipelines which have a shipside exit, to prevent seawater entering the system during heavy seas.
Type
Straight (Vertical Pattern) • With Closing Device
Size & Connections
DN50 to DN200 • JIS-5K or JIS-10K Flange
Duty
Seawater • Shipside
Materials
Cast Steel Body • Bronze Disc • NBR Faced Flap
Test Pressure
5.1 kgf/m2
Temperature Range
-10 to 60°C
Compliance & Approvals
JIS-5K or JIS-10K • 3.1 & 3.2 Material Certs (on request)
F3060 – Cast Steel Angled Storm Valve c/w Closing Device – JIS Specifications
The F3060 is an angled storm valve with a closing device, it is generally used in sanitary discharge pipelines which have a shipside exit, to prevent seawater entering the system during heavy seas.
Type
Angled Pattern • With Closing Device
Size & Connections
DN50 to DN200 • JIS-5K or JIS-10K Flange
Duty
Seawater • Shipside
Materials
Cast Steel Body • Bronze Disc • NBR Faced Flap
Test Pressure
5.1 kgf/m2
Temperature Range
-10 to 60°C
Compliance & Approvals
JIS-5K or JIS-10K • 3.1 & 3.2 Material Certs (on request)
JV36N – Marine Ductile Iron Double Flange Butterfly Valve, NBR Lined – JIS F7480 Length
Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons. Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Double Flanged
Size & Connections
DN40 to DN600 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-15°C to 80°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • JIS F7480
* Specify when enquiring
JV36E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined – JIS F7480 Length
Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water. Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Double Flanged
Size & Connections
DN40 to DN600 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • JIS F7480
* Specify when enquiring
JV36V – Marine Ductile Iron Double Flange Butterfly Valve, Viton Lined – JIS F7480 Length
Marine quality butterfly valve with a bonded Viton liner suitable for many high-temperature duties (not hot water). Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Double Flanged
Size & Connections
DN40 to DN600 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Cold Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • Viton Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
0°C to 200°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • JIS F7480
* Specify when enquiring
JV52N – Ductile Iron Wafer Butterfly Valve, NBR Lined
High-quality butterfly valve with an NBR liner, offering a long life with low maintenance. Manually operated, supplied with a lockable lever or gearbox.
Type
Multi-Flange Wafer
Size & Connections
DN40 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150 & JIS 5/10/16 Flanges
Duty
Air • Inert Gas • Oil • Water
Materials
Epoxy Coated Ductile Iron Body • Aluminium Bronze Disc • NBR Liner
Pressure Rating
PN16
Temperature
-15°C to 80°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting
JV57N – Marine Ductile Iron Wafer Butterfly Valve, NBR Lined
Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons. Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Multi-Flange Wafer
Size & Connections
DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-15°C to 80°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
JV57E – Marine Ductile Iron Wafer Butterfly Valve, EPDM Lined
Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water. Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Multi-Flange Wafer
Size & Connections
DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
JV57V – Marine Ductile Iron Wafer Butterfly Valve, Viton Lined
Marine quality butterfly valve with a bonded Viton liner suitable for many high-temperature duties (not hot water). Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Multi-Flange Wafer
Size & Connections
DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges*
Duty
Air • Inert Gas • Oil • Seawater • Cold Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • Viton Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
0°C to 200°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
JV46N – Marine Ductile Iron Double Flange Butterfly Valve, NBR Lined – EN558-1 Series 13 Length
Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons. Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Double Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-15°C to 80°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 13
* Specify when enquiring
JV46E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined – EN558-1 Series 13 Length
Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water. Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Double Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 13
* Specify when enquiring
JV46V – Marine Ductile Iron Double Flange Butterfly Valve, Viton Lined – EN558-1 Series 13 Length
Marine quality butterfly valve with a bonded Viton liner suitable for many high-temperature duties (not hot water). Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Double Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Cold Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • Viton Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
0°C to 200°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 13
* Specify when enquiring
JV64N – Marine Ductile Iron Lugged & Tapped Butterfly Valve, NBR Lined
Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons. Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Lugged & Tapped
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-15°C to 80°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
JV64E – Marine Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined
Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water. Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Lugged & Tapped
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
JV64V – Marine Ductile Iron Lugged & Tapped Butterfly Valve, Viton Lined
Marine quality butterfly valve with a bonded Viton liner suitable for many high-temperature duties (not hot water). Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Lugged & Tapped
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Cold Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • Viton Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
0°C to 200°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
JV60N – Marine Ductile Iron Mono Flange Butterfly Valve, NBR Lined
Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons. Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Mono Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-15°C to 80°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
JV60E – Marine Ductile Iron Mono Flange Butterfly Valve, EPDM Lined
Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water. Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Mono Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
JV60V – Marine Ductile Iron Mono Flange Butterfly Valve, Viton Lined
Marine quality butterfly valve with a bonded Viton liner suitable for many high-temperature duties (not hot water). Supplied bare shaft, please specify if lever, gearbox or actuator is required.
Type
Mono Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Cold Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • Viton Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
0°C to 200°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
JV96 – Wafer High-Performance Butterfly Valve, PTFE Lined
High-performance butterfly valve designed and tested to meet or exceed most general industry standards, please specify if lever, gearbox or actuator is required.
Type
Multi-Flange Wafer • High-Performance • Double offset
Size & Connections
DN50 to DN400 • Wafer – Between BS4504 PN10/16, ANSI150 & JIS 5/10K Flanges*
Duty
Air • Inert Gas • Oil • Process • Seawater • Steam • Water
Materials
Carbon Steel or Ductile Iron Body • Stainless Steel Disc • PTFE Liner
Pressure Rating
PN16
Temperature
-10°C to 180°C
Compliance & Approvals
Lloyds & ABS Type Approval • EN558-1 Series 20
* Specify when enquiring
JV97 – Carbon Steel Lugged & Tapped High-Performance Butterfly Valve, PTFE Lined
High-performance butterfly valve designed and tested to meet or exceed most general industry standards, please specify if lever, gearbox or actuator is required.
Type
Lugged & Tapped • High-Performance • Double offset
Size & Connections
DN50 to DN400 • Wafer – Between BS4504 PN10/16, ANSI150/300 & JIS 5/10K Flanges*
Duty
Air • Inert Gas • Oil • Process • Seawater • Steam • Water
Materials
Carbon Steel Body • Stainless Steel Disc • PTFE Liner
Pressure Rating
PN16
Temperature
-10°C to 180°C
Compliance & Approvals
Lloyds & ABS Type Approval • EN558-1 Series 20
* Specify when enquiring
JV98 – Carbon Steel Double Flange High-Performance Butterfly Valve, PTFE Lined
High-performance butterfly valve designed and tested to meet or exceed most general industry standards, please specify if lever, gearbox or actuator is required.
Type
Double Flanged • High-Performance • Double offset
Size & Connections
DN50 to DN400 • Wafer – Between BS4504 PN10/16, ANSI150/300 & JIS 5/10K Flanges*
Duty
Air • Inert Gas • Oil • Process • Seawater • Steam • Water
Materials
Carbon Steel Body • Stainless Steel Disc • PTFE Liner
Pressure Rating
PN16
Temperature
-10°C to 180°C
Compliance & Approvals
Lloyds & ABS Type Approval • EN558-1 Series 13
* Specify when enquiring
JV100001 – Ductile Iron Wafer Butterfly Valve, EPDM Lined – WRAS Approved
WRAS approved general purpose valve with an EPDM liner, offering a long life with low maintenance. Manually operated, supplied with a lockable lever.
Type
Multi-Flange Wafer
Size & Connections
DN50 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150 & JIS5/10/16K Flanges
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-20°C to 120°C
Compliance & Approvals
WRAS (S52) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
JV140021 – Marine Bronze Pressure Reducing Valve for Seawater, Liquids, Air & Neutral Gases
The JV140021 is an accurate and reliable direct acting pressure reducing valve used to maintain a pre-set downstream pressure. It is particularly suitable where a positive shut-off is required under “no flow” conditions. The construction materials of this pressure reducing valves make it suitable for seawater as well as many other duties.
Type
Direct-Acting
Size & Connections
DN15 to DN25 • PN40 Flanged (PN16, ANSI 150/300 & JIS on request)
Duty
Seawater • Air • Neutral Gases • Water
Materials
Bronze Body & Internal Parts • NBR Diaphragm & Seals (FKM option)
Maximum Upstream Pressure
Up to 30 Bar
Downstream Pressure Range
1 to 10 Bar
Temperature
0°C to 80°C
Compliance & Approvals
3.1 Material Cert (on request)
