Butterfly Valves with EPDM Liners

EPDM lined butterfly valves for a wide variety of isolation applications particularly water duties, some available with WRAS approval.

JV52E – Ductile Iron Wafer Butterfly Valve, EPDM Lined

High-quality butterfly valve with an EPDM liner, offering a long life with low maintenance. Manually operated, supplied with a lockable lever or gearbox.

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150 & JIS 5/10/16 Flanges
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-10°C to 120°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV52E – Ductile Iron Wafer Butterfly Valve, EPDM Lined - PDF DatasheetISO5211 Pad Mount

JV52E – Ductile Iron Wafer Butterfly Valve, EPDM Lined

JV100001 – Cast Iron Wafer Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose valve with an EPDM liner, offering a long life with low maintenance. Manually operated, supplied with a lockable lever.

Type
Multi-Flange Wafer
Size & Connections
DN50 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150, JIS10K & BS Flanges
Duty
Water
Materials
Epoxy Coated Cast Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-20°C to 120°C
Compliance & Approvals
WRAS (CBF10-TA03) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV100001 – Cast Iron Wafer WRAS Approved Butterfly Valve, EPDM Lined & Stainless Steel Disc - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

JV100001 – Cast Iron Wafer WRAS Approved Butterfly Valve, EPDM Lined & Stainless Steel Disc

JV101005 – Cast Iron Wafer Butterfly Valve, EPDM Lined

General purpose butterfly valve with a nickel-plated disc and an EPDM liner. Manually operated, supplied with a lockable lever.

Type
Multi-Flange Wafer
Size & Connections
DN50 to DN250 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS D/E Flanges
Duty
Water
Materials
Cast Iron Body • Nickel Plated Ductile Iron Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-20°C to 120°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV101005 – Cast Iron Wafer Butterfly Valve, EPDM Lined & Ductile Iron Disc - PDF DatasheetISO5211 Pad Mount

JV101005 – Cast Iron Wafer Butterfly Valve, EPDM Lined & Ductile Iron Disc



JV100007 – Ductile Iron Wafer Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose valve with an EPDM liner, offering a long life with low maintenance. Manually operated, supplied with a lockable lever or gearbox.

Type
Multi-Flange Wafer
Size & Connections
DN50 to DN600 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS D/E Flanges
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (J9 Series) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV100001 – Cast Iron Wafer WRAS Approved Butterfly Valve, EPDM Lined & Stainless Steel Disc - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

JV100003 – Ductile Iron Wafer Butterfly Valve, NBR Lined & Stainless Steel Disc

JV57E – Marine Ductile Iron Wafer Butterfly Valve, EPDM Lined

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV57E – Marine Ductile Iron Wafer Butterfly Valve, EPDM Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV57E – Marine Ductile Iron Wafer Butterfly Valve, EPDM Lined

JV101003 – Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined – PN25 WRAS Approved

A higher PN25 pressure rated butterfly valve with WRAS approval valve suitable for potable water. Manually operated, supplied with a lockable lever or gearbox.

Type
Lugged & Tapped
Size & Connections
DN50 to DN200 • PN16 Flange
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN25
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (2302 / 2502 Series) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV101003 – Ductile Iron Lugged Butterfly Valve, EPDM Lined & Stainless Steel Disc - WRAS Approved - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

JV101003 – Ductile Iron Lugged Butterfly Valve, EPDM Lined & Stainless Steel Disc - WRAS Approved

JV100002 – Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose lugged and tapped butterfly valve with an EPDM liner. Manually operated, supplied with a lockable lever or gearbox.

Type
Lugged & Tapped
Size & Connections
DN25 to DN600 • PN16 Flange
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
25-300mm PN16 • 350-600mm PN10
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (L9 Series) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV100002 – Ductile Iron Lugged Butterfly Valve, EPDM Lined & Stainless Steel Disc - WRAS Approved - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

JV100002 – Ductile Iron Lugged Butterfly Valve, EPDM Lined & Stainless Steel Disc - WRAS Approved

JV100010 – Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined – ANSI 150 WRAS Approved

WRAS approved general purpose butterfly valve with an EPDM liner, lugged and tapped to ANSI 150. Manually operated, supplied with a lockable lever or gearbox.

Type
Lugged & Tapped
Size & Connections
DN50 to DN200 • ANSI 150 Flange
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (L9 Series) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV100010 – Ductile Iron Lugged Butterfly Valve, EPDM Lined - WRAS Approved - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

JV100010 – Ductile Iron Lugged Butterfly Valve, EPDM Lined - WRAS Approved

JV100008 – Stainless Steel Wafer Butterfly Valve, EPDM Lined – WRAS Approved

A butterfly valve with a stainless steel body and disc and EPDM liner makes this valve a cost-effective solution for a wide variety of isolation applications particularly potable water duties. Manually operated, supplied with a lockable lever or gearbox.

Type
Multi-Flange Wafer
Size & Connections
DN50 to DN200 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS D/E Flanges
Duty
Water
Materials
Stainless Steel Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (J9 Series) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV100008 – Stainless Steel Wafer Butterfly Valve, EPDM Lined & Stainless Steel Disc - WRAS Approved - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

JV100008 – Stainless Steel Wafer Butterfly Valve, EPDM Lined & Stainless Steel Disc - WRAS Approved

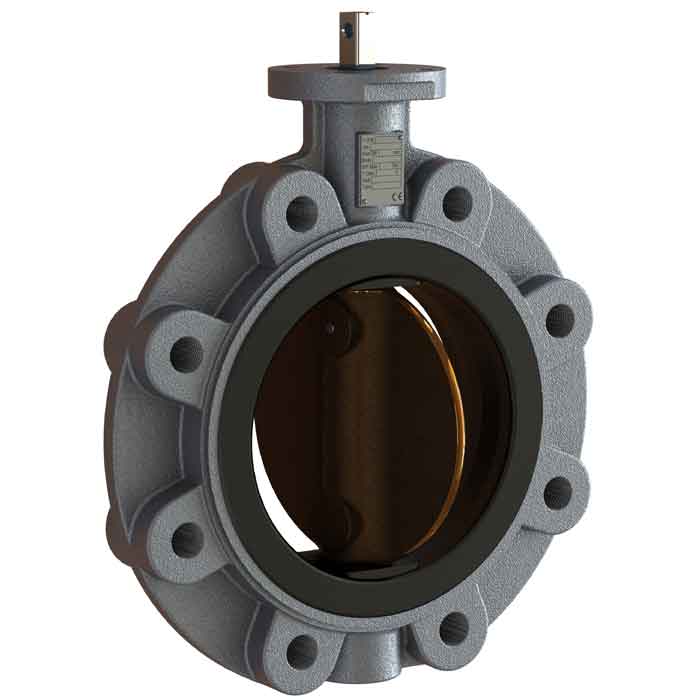

JV64E – Marine Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Lugged & Tapped
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV64E – Marine Ductile Iron Lugged Butterfly Valve, EPDM Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV64E – Marine Ductile Iron Lugged Butterfly Valve, EPDM Lined



JV36E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined – JIS F7480 Length

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Double Flanged
Size & Connections
DN40 to DN600 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • JIS F7480
* Specify when enquiring
Contact UsJV36E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined - JIS F7480 Length - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV36E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined - JIS F7480 Length

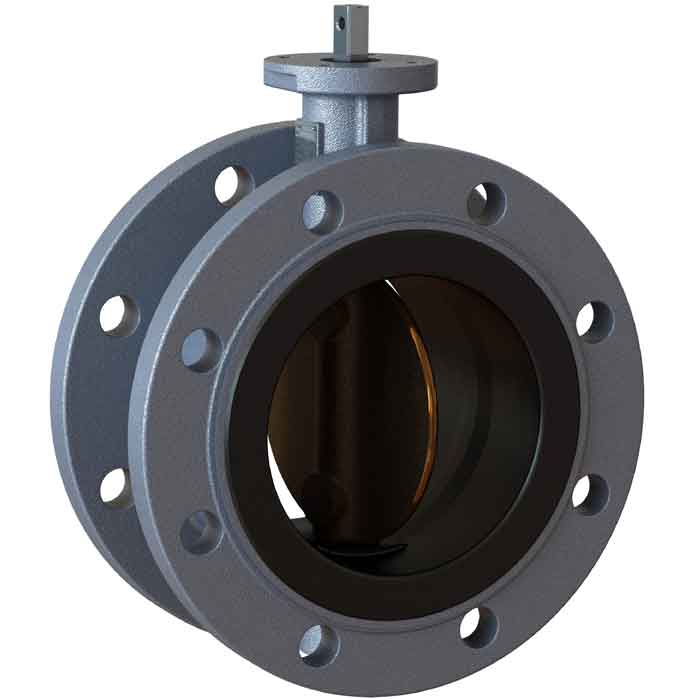

JV46E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined – EN558-1 Series 13 Length

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Double Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 13
* Specify when enquiring
Contact UsJV46E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined - EN558-1 Series 13 Length - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV46E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined - EN558-1 Series 13 Length

JV60E – Marine Ductile Iron Mono Flange Butterfly Valve, EPDM Lined

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Mono Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV60E – Marine Ductile Iron Mono Flange Butterfly Valve, EPDM Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV60E – Marine Ductile Iron Mono Flange Butterfly Valve, EPDM Lined
