Ball Valves

Johnson Valves offer a range of ball valves which are used for isolation and diversion offering easy and fast operation with good flow characteristics. We offer ball valves in various materials including brass, stainless steel, bronze and steel with various connections to BSP, NPT, DIN and ANSI standards.


Ball Valve Body Materials

Brass Ball Valves

Brass

Stainless Steel Ball Valves

Stainless Steel

Bronze Ball Valves

Bronze

Ductile Iron Ball Valves

Ductile Iron

Carbon Steel Ball Valves

Carbon Steel


Ball Valve Connections

Threaded (Screwed) Ball Valves

Threaded

Flanged Ball Valves

Flanged

Butt Weld Ball Valves

Butt Weld

Socket Weld Ball Valves

Socket Weld

Solvent Weld Ball Valves

Solvent Weld


Ball Valve Actuation

Lever Operated Ball Valves

Lever

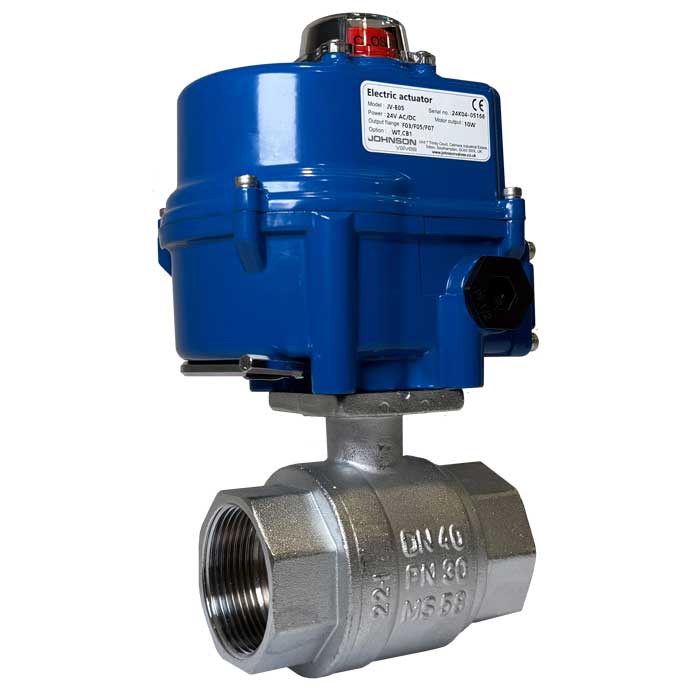

 Electrically Actuated Ball Valves

Electric

Electrically Actuated (Spring Return) Ball Valves

Electric Spring Return

Pneumatically Actuated Ball Valves

Pneumatic



JV090001 – Brass Nickel Plated Ball Valve

WRAS approved for water duty and BSI EN 331 for gas service (Derby range). Manually operated, supplied with a yellow lever.

Type
Two-Piece • Full Bore • Lever Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSP Female
Duty
Air • Gas • Oil • Water
Materials
Nickel Plated Brass Body • PTFE Seat • Chrome Plated Brass Ball
Pressure Rating
6-15mm PN40 • 20-25mm PN32 • 32-65mm PN25 • 80-100mm PN16
Temperature
Liquids: -20°C to 110°C • Gas: -20°C to 70°C (Dependent on pressure)
Compliance & Approvals
WRAS* • BSI Gas Approved to BS EN 331*  (*6-50mm only)
Buy JV090001 - Brass Nickel Plated Ball ValveJV090001 - Brass Nickel Plated Ball Valve - PDF DatasheetWRAS Approved ProductBSI EN331 Gas Approved Product

JV090001 - Brass Nickel Plated Ball Valve

JV090002 – DZR Brass Ball Valve

A WRAS approved (Isis range) economical and versatile full bore ball valve suitable for water and marine applications. Manually operated, supplied with a lever.

Type
Two-Piece • Full Bore • Lever Operated
Size & Connections
6mm (1/4″) to 50mm (2″) BSP Female
Duty
Air • Gas • Oil • Water
Materials
DZR Brass Body • PTFE Seat • DZR Brass Ball
Pressure Rating
6-10mm PN50 • 15-50mm PN25
Temperature
-15°C to 120°C (Dependent on pressure)
Compliance & Approvals
WRAS • DNV GL Type Approved
Buy JV090002 - DZR Brass Ball ValveJV090002 - DZR Brass Ball Valve- PDF DatasheetWRAS Approved ProductDNV Germanischer Lloyd Type Approved

JV090002 - DZR Brass Ball Valve

JV090013 – WRAS Approved Brass Nickel Plated Ball Valve, ISO 5211 Direct Mount

WRAS approved quarter turn ball valve with an ISO 5211 mounting pad enabling the valve to be fitted with various actuation options. Supplied without lever, can be supplied complete with lever, electric or pneumatic actuator on request.

Type
Two-Piece • Full Bore • ISO 5211 Mount
Size & Connections
6mm (1/4″) to 80mm (3″) BSPP Female
Duty
Air • Gas • Oil • Water
Materials
Nickel Plated Brass Body • PTFE Seat • Chrome Plated Brass Ball
Pressure Rating
PN40
Temperature
0°C to 120°C (Dependent on size & pressure)
Compliance & Approvals
WRAS (160 Range)
Contact UsJV090013 – Brass Nickel Plated Ball Valve - ISO 5211 Direct Mount - PDF DatasheetISO5211 Pad MountWRAS Approved Product

JV090013 – Brass Nickel Plated Ball Valve - ISO 5211 Direct Mount

JV090003 – One-Piece Stainless Steel Ball Valve

A compact and versatile one-piece stainless steel ball valve suitable for a wide range of isolation applications. The valve is lockable in the open and closed position. Manually operated, supplied with a lever.

Type
One-Piece • Reduced Bore • Lever Operated • Blow-out Proof Stem
Size & Connections
6mm (1/4″) to 50mm (2″) BSP Female
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Buy JV090003 – One-Piece Stainless Steel Ball ValveJV090003 – One-Piece Stainless Steel Ball Valve - PDF Datasheet

JV090003 – One-Piece Stainless Steel Ball Valve

JV090004 – Two-Piece Stainless Steel Ball Valve

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. The valve is lockable in the open and closed position. Manually operated, supplied with a lever.

Type
Two-Piece • Full Bore • Lever Operated • Blow-out Proof Stem
Size & Connections
6mm (1/4″) to 100mm (4″) BSPP Female (NPT on request)
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Buy JV090004 - Two-Piece Stainless Steel Ball ValveJV090004 - Two-Piece Stainless Steel Ball Valve - PDF Datasheet

JV090004 - Two-Piece Stainless Steel Ball Valve

JV090005 – Three-Piece Stainless Steel Ball Valve

A versatile and robust three-piece stainless steel ball valve suitable for a wide range of isolation applications. The valve is lockable in the open and closed position. Manually operated, supplied with a lever.

Type
Three-Piece • Full Bore • Lever Operated • Blow-out Proof Stem
Size & Connections
6mm (1/4″) to 100mm (4″) BSPP Female • Butt & Socket Weld (on request)
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Buy JV090005 - Three-Piece Stainless Steel Ball Valve JV090005 - Three-Piece Stainless Steel Ball Valve - PDF Datasheet

JV090005 - Three-Piece Stainless Steel Ball Valve

JV090014 – Three-Piece Stainless Steel Ball Valve, ISO 5211 Direct Mount

A versatile and robust three-piece stainless steel ball valve suitable for a wide range of isolation applications with an ISO 5211 mounting pad enabling the valve to be fitted with various actuation options. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount
Size & Connections
15mm (1/2″) to 100mm (4″) BSPT Female • Butt & Socket Weld (on request)
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN62
Temperature
0°C to 200°C (Dependent on pressure)
Compliance & Approvals
ATEX II 2 GD c T2 Non-electrical Valves
Contact UsJV090014 – Three-Piece Stainless Steel Ball Valve - ISO 5211 Direct Mount - PDF DatasheetATEX Approved ProductISO5211 Pad Mount

JV090014 – Three-Piece Stainless Steel Ball Valve – ISO 5211 Direct Mount

JV090028 – High Pressure Stainless Steel Ball Valve

A compact and versatile ball valve with a stainless steel body from bar stock suitable for a wide range of high pressure isolation applications. Manually operated, supplied with a lever.

Type
One-Piece (Bar Stock) • Reduced Bore • Lever Operated
Size & Connections
6mm (1/4″) to 25mm (1″) BSPP, BSPT or NPT Female
Duty
Air • Inert Gas • Oil • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE/POM Seats
Pressure Rating
400 Bar
Temperature
0°C to 40°C
Contact UsJV090028 - High Pressure Stainless Steel Ball Valve - PDF Datasheet

JV090028 - High Pressure Stainless Steel Ball Valve

JV090006 – Stainless Steel Fire Safe Ball Valve, ISO 5211 Direct Mount

A high performance, fire-safe stainless steel bodied full bore ball valve suitable for various heavy duty applications with an ISO 5211 mounting pad enabling the valve to be fitted with various actuation options. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Fire Safe
Size & Connections
15mm (1/2″) to 80mm (3″) BSP Female • Butt & Socket Weld (on request)
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • CTFE Seat
Pressure Rating
15-25mm PN138 • 32-50mm PN103 • 65-80mm PN63
Temperature
-20°C to 220°C (Dependent on pressure)
Compliance & Approvals
Fire Safe API 607 4th edition and anti-static •  DNV-GL Type Approved
Contact UsJV090006 – Stainless Steel Fire Safe Ball Valve - ISO 5211 Direct Mount - PDF DatasheetFire Safe Approved to API 607 4th EditionISO5211 Pad Mount


JV090006 – Stainless Steel Fire Safe Ball Valve - ISO 5211 Direct Mount

JV090007 – Three-Way L-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Way • L-Ported • Reduced Bore • ISO 5211 Mount
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
0°C to 200°C (Dependent on pressure)
Compliance & Approvals
ATEX II 2 GD c T2 Non-electrical Valves
Contact UsJV090007 – Three-Way L-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount - PDF DatasheetATEX Approved ProductISO5211 Pad Mount


JV090007 – Three-Way L-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount

JV090008 – Three-Way T-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Way • T-Ported • Reduced Bore • ISO 5211 Mount
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
0°C to 200°C (Dependent on pressure)
Compliance & Approvals
ATEX II 2 GD c T2 Non-electrical Valves
Contact UsJV090008 – Three-Way L-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount - PDF DatasheetATEX Approved ProductISO5211 Pad Mount


JV090008 – Three-Way L-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount

JV090018 – Stainless Steel Ball Valve, Flanged PN16

A full-bore, two-piece general purpose stainless steel ball valve with PN16 flanges. The valve is lockable in the open and closed position. Manually operated, supplied with a lever.

Type
Two-Piece • Full Bore • Blow-out Proof Stem
Size & Connections
DN15 to DN250 • PN16 Flange
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN16
Temperature
-25 to 200°C (Dependent on pressure)
Buy JV090018 - Stainless Steel Ball Valve, Flanged PN16JV090018 - Stainless Steel Ball Valve, Flanged PN16 - PDF Datasheet

JV090018 - Stainless Steel Ball Valve, Flanged PN16

JV090019 – Two-Piece Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged PN16/40

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN200 • PN16/40 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
15-50mm PN40 • 65-200mm PN16
Temperature
-25°C to 200°C (Dependent on size & pressure)
Compliance & Approvals
ATEX II 2 GD c T2 Non-electrical Valves
Contact UsJV090019 – Two-Piece Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16/40 - PDF DatasheetATEX Approved ProductISO5211 Pad Mount

JV090019 – Two-Piece Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16/40

JV090017 – Fire Safe Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged PN16/40

A high performance, fire-safe stainless steel bodied full bore ball valve suitable for various heavy duty applications with an ISO 5211 mounting pad enabling the valve to be fitted with various actuation options. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Fire Safe
Size & Connections
DN15 to DN250 • PN16/40 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • TFM1600 Seat
Pressure Rating
15-50mm PN40 • 65-250mm PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Compliance & Approvals
Fire Safe API 607 4th edition & anti-static • ATEX II 2 GD c T2 Non-electrical Valves
Contact UsJV090017 – Stainless Steel Fire Safe Ball Valve - ISO 5211 Direct Mount, Flanged PN16/40 - PDF DatasheetATEX Approved ProductFire Safe Approved to API 607 4th Edition
ISO5211 Pad Mount

JV090017 – Stainless Steel Fire Safe Ball Valve, ISO 5211 Direct Mount, Flanged PN16/40

JV090020 – Three-Way L-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged PN16

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV090020 – Three-Way L-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16- PDF DatasheetISO5211 Pad Mount

JV090020 – Three-Way L-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16

JV090021 – Three-Way T-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged PN16

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV090021 – Three-Way T-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16- PDF DatasheetISO5211 Pad Mount

JV090021 – Three-Way T-Ported Stainless Steel Ball Valve - ISO 5211 Direct Mount, Flanged PN16

JV090011 – Two-Piece Bronze Ball Valve, ISO 5211 Direct Mount, Flanged PN16

The materials make this valve particularly suitable for marine duties as well as many other applications. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN200 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Bronze Body • Stainless Steel Ball • PTFE Seat
Pressure Rating
PN16
Temperature
0°C to 180°C (Dependent on size & pressure)
Compliance & Approvals
3.1 & 3.2 Material Certification (available on request)
Contact UsJV090011 – Two-Piece Bronze Ball Valve - ISO 5211 Direct Mount, Flanged PN16 - PDF Datasheet3.1 & 3.2 Material Certification (available on request)ISO5211 Pad Mount

JV090011 – Two-Piece Bronze Ball Valve - ISO 5211 Direct Mount, Flanged PN16

JV090009 – Stainless Steel Ball Valve, Flanged ANSI 150

A full-bore, two-piece general purpose stainless steel ball valve with ANSI 150 flanges. The valve is lockable in the open and closed position. Manually operated, supplied with a lever.

Type
Two Piece • Full Bore • Blow-out Proof Stem
Size & Connections
DN15 to DN250 • ANSI 150 Flange
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
20 Bar (12 Bar for steam)
Temperature
-20 to 200°C (dependent on pressure)
Compliance & Approvals
ASME B16.10
Contact us for detailsJV090009 - Stainless Steel Ball Valve, Flanged ANSI 150 - PDF Datasheet

JV090009 - Stainless Steel Ball Valve, Flanged ANSI 150

JV090010 – Two-Piece Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN100 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
20 Bar (12 Bar for steam)
Temperature
-25°C to 200°C (Dependent on pressure)
Compliance & Approvals
ATEX II 2 GD c T2 Non-electrical Valves • ASME B16.10
Contact UsJV090010 – Two-Piece Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150 - PDF DatasheetATEX Approved ProductISO5211 Pad Mount

JV090010 – Two-Piece Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

JV090022 – Three-Way L-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV090022 – Three-Way L-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150- PDF DatasheetISO5211 Pad Mount

JV090022 – Three-Way L-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

JV090023 – Three-Way T-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV090023 – Three-Way T-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150- PDF DatasheetISO5211 Pad Mount

JV090023 – Three-Way T-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

JV090012 – Two-Piece Bronze Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

The materials make this valve particularly suitable for marine duties as well as many other applications. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN200 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Bronze Body • Stainless Steel Ball • PTFE Seat
Pressure Rating
16 Bar
Temperature
0°C to 180°C (Dependent on pressure)
Compliance & Approvals
3.1 & 3.2 Material Certification (available on request)
Contact UsJV090012 – Two-Piece Bronze Ball Valve - ISO 5211 Direct Mount, Flanged ANSI 150 - PDF Datasheet3.1 & 3.2 Material Certification (available on request)ISO5211 Pad Mount

JV090012 – Two-Piece Bronze Ball Valve - ISO 5211 Direct Mount, Flanged ANSI 150 - PDF Datasheet

JV090025 – BSI EN331 Gas Approved Ductile Iron Ball Valve, Flanged PN16

A BSI EN331 gas approved, ductile iron full bore ball valve particularly suitable for gas duties but can be used for other duties. Supplied with a manual lever up to DN150 and a gearbox with handwheel from DN200.

Type
Two-Piece • Full Bore
Size & Connections
DN25 to DN300 • PN16 Flange
Duty
Air • Gas • Oil • Water
Materials
Ductile Iron Body • Stainless Steel Ball & Stem • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 60°C
Compliance & Approvals
BSI EN331
Contact UsJV090025 – BSI EN331 Gas Approved Ductile Iron Ball Valve, Flanged PN16 - PDF DatasheetBSI EN331 Gas Approved Product

JV090017 – BSI EN331 Gas Approved Ductile Iron Ball Valve, Flanged PN16

JV240007 – Electrically Actuated Brass Nickel Plated Ball Valve – WRAS

WRAS approved, full bore ball valve which is suited for many applications offering reliability at an economical cost. Supplied completely assembled with a JV-E Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 80mm (3″) BSPP Female
Duty
Air • Gas • Oil • Water
Materials
Nickel Plated Brass Body • PTFE Seat • Chrome Plated Brass Ball
Pressure Rating
PN40
Temperature
0°C to 120°C (Dependent on size & pressure)
Compliance & Approvals
WRAS (160 Range) • Actuator Functionality Certificate
Contact UsJV240007 – Electrically Actuated Brass Nickel Plated Ball Valve - PDF DatasheetElectrically Actuated WRAS Approved Product

JV240007 – Electrically Actuated Brass Nickel Plated Ball Valve

JV241002 – Electrically Actuated (Spring Return) Brass Nickel Plated Ball Valve – WRAS

Full bore, WRAS approved ball valve which is suited for many applications offering reliability at an economical cost. Supplied completely assembled with a SRFA-R Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated (Spring Return)
Size & Connections
6mm (1/4″) to 50mm (2″) BSPP Female
Duty
Air • Gas • Oil • Water
Materials
Nickel Plated Brass Body • PTFE Seat • Chrome Plated Brass Ball
Pressure Rating
PN40
Temperature
0°C to 120°C (Dependent on size & pressure)
Compliance & Approvals
WRAS (160 Range) • Actuator Functionality Certificate
Contact UsJV241002 – Electrically Actuated (Spring Return) Brass Nickel Plated Ball Valve - PDF DatasheetElectrically ActuatedWRAS Approved Product

JV241002 – Electrically Actuated (Spring Return) Brass Nickel Plated Ball Valve

JV240019 – Pneumatically Actuated Brass Nickel Plated Ball Valve – WRAS

WRAS approved, full bore ball valve which is suited for many applications offering reliability at an economical cost. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
6mm (1/4″) to 80mm (3″) BSPP Female
Duty
Air • Gas • Oil • Water
Materials
Nickel Plated Brass Body • PTFE Seat • Chrome Plated Brass Ball
Pressure Rating
PN40
Temperature
0°C to 120°C (Dependent on size & pressure)
Compliance & Approvals
WRAS (160 Range) • Actuator Functionality Certificate
Contact UsJV240019 – Pneumatically Actuated Brass Nickel Plated Ball Valve - PDF DatasheetPneumatically ActuatedWRAS Approved Product

JV240019 – Pneumatically Actuated Brass Nickel Plated Ball Valve

JV240008 – Electrically Actuated Three-Piece Stainless Steel Ball Valve

A versatile and robust three-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240008 – Electrically Actuated Three-Piece Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV240008 – Electrically Actuated Three-Piece Stainless Steel Ball Valve

JV241003 – Electrically Actuated (Spring Return) Three-Piece Stainless Steel Ball Valve

A versatile and robust three-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a SRFA-R Electric Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Electrically Operated (Spring Return)
Size & Connections
6mm (1/4″) to 40mm (1 1/2″) BSPP Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV241003 – Electrically Actuated (Spring Return) Three-Piece Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV241003 – Electrically Actuated (Spring Return) Three-Piece Stainless Steel Ball Valve

JV240020 – Pneumatically Actuated Three-Piece Stainless Steel Ball Valve

A versatile and robust three-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPP Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240020 – Pneumatically Actuated Three-Piece Stainless Steel Ball Valve - PDF DatasheetPneumatically Actuated

JV240020 – Pneumatically Actuated Three-Piece Stainless Steel Ball Valve

JV240009 – Electrically Actuated Fire Safe Stainless Steel Ball Valve

A high performance, fire-safe stainless steel bodied full bore ball valve suitable for various heavy duty applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Fire Safe • Electrically Operated
Size & Connections
15mm (1/2″) to 100mm (3″) BSP Female • Butt & Socket Weld (on request)
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • CTFE Seat
Pressure Rating
15-25mm PN138 • 32-50mm PN103 • 65-80mm PN63
Temperature
-20°C to 220°C (Dependent on pressure)
Contact UsJV240009 – Electrically Actuated Fire Safe Stainless Steel Ball Valve - PDF DatasheetFire Safe Approved to API 607 4th EditionElectrically Actuated

JV240009 – Electrically Actuated Fire Safe Stainless Steel Ball Valve

JV240021 – Pneumatically Actuated Fire Safe Stainless Steel Ball Valve

A high performance, fire-safe stainless steel bodied full bore ball valve suitable for various heavy duty applications. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Fire Safe • Electrically Operated
Size & Connections
15mm (1/2″) to 100mm (3″) BSP Female • Butt & Socket Weld (on request)
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • CTFE Seat
Pressure Rating
15-25mm PN138 • 32-50mm PN103 • 65-80mm PN63
Temperature
-20°C to 220°C (Dependent on pressure)
Contact UsJV240021 – Pneumatically Actuated Fire Safe Stainless Steel Ball Valve - PDF DatasheetFire Safe Approved to API 607 4th EditionPneumatically Actuated

JV240021 – Pneumatically Actuated Fire Safe Stainless Steel Ball Valve

JV240011 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240011 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV240011 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve

JV240023 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240023 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve - PDF DatasheetPneumatically Actuated

JV240023 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve

JV240010 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240010 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV240010 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve

JV240022 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240022 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve - PDF DatasheetPneumatically Actuated

JV240022 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve

JV240012 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN200 • PN16/40 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
15-50mm PN40 • 65-200mm PN16
Temperature
-25°C to 200°C (Dependent on size & pressure)
Contact UsJV240012 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40 - PDF DatasheetElectrically Actuated

JV240012 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40

JV240024 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN200 • PN16/40 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
15-50mm PN40 • 65-200mm PN16
Temperature
-25°C to 200°C (Dependent on size & pressure)
Contact UsJV240024 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40 - PDF DatasheetPneumatically Actuated

JV240024 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40

JV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16 - PDF DatasheetElectrically Actuated

JV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

JV240037 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240037 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16 - PDF DatasheetPneumatically Actuated

JV240037 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

JV240034 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240034 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16 - PDF DatasheetElectrically Actuated

JV240034 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16

JV240038 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240038 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16 - PDF DatasheetPneumatically Actuated

JV240038 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16

JV240013 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN100 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
20 Bar (12 Bar for steam)
Temperature
-25°C to 200°C (Dependent on pressure)
Contact UsJV240013 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetElectrically Actuated

JV240013 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150

JV240025 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN100 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
20 Bar (12 Bar for steam)
Temperature
-25°C to 200°C (Dependent on pressure)
Contact UsJV240025 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetPneumatically Actuated

JV240025 – Pneumatically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150

JV240035 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240035 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetElectrically Actuated

JV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

JV240039 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240039 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetPneumatically Actuated

JV240039 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150

JV240036 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240036 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetElectrically Actuated

JV240036 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150

JV240040 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240040 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetPneumatically Actuated

JV240040 – Pneumatically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150

JV091019 – Ductile Iron Ball Valve, Flanged PN16 – ISO 5211 Direct Mount

The JV091019 is a ductile iron bodied full bore ball valve suitable for various applications. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore
Size & Connections
DN15 to DN200 • PN16 Flange
Duty
Air • Oil • Water
Materials
Ductile Iron Body • Brass Ball & Stem • PTFE Seat
Pressure Rating
PN16
Temperature
-10°C to 100°C
Compliance & Approvals
DIN 3202 F4 length (up to DN150) • DIN 3202 F5 length (DN200)
Contact UsJV091019 – Ductile Iron Ball Valve, Flanged PN16 - ISO 5211 Direct Mount - PDF Datasheet

JV091019 – Ductile Iron Ball Valve, Flanged PN16 - ISO 5211 Direct Mount

JV090026 – BSI EN331 Gas Approved Ductile Iron Ball Valve, Flanged PN16 – ISO 5211 Direct Mount

A BSI EN331 gas approved, ductile iron full bore ball valve particularly suitable for gas duties but can be used for other duties. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore
Size & Connections
DN15 to DN200 • PN16 Flange
Duty
Air • Gas • Oil • Water
Materials
Ductile Iron Body • Brass Ball & Stem • RPTFE Seat
Pressure Rating
PN16
Temperature
-10°C to 70°C
Compliance & Approvals
BSI EN331
Contact UsJV090026 – BSI EN331 Gas Approved Ductile Iron Ball Valve, Flanged PN16 - ISO 5211 Direct Mount - PDF DatasheetBSI EN331 Gas Approved Product

JV090026 – BSI EN331 Gas Approved Ductile Iron Ball Valve, Flanged PN16 - ISO 5211 Direct Mount

JV090016 – Fire Safe Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150

A high performance, fire-safe stainless steel bodied full bore ball valve suitable for various heavy duty applications with an ISO 5211 mounting pad enabling the valve to be fitted with various actuation options. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Fire Safe
Size & Connections
DN15 to DN250 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • TFM1600 Seat
Pressure Rating
Class 150
Temperature
-10°C to 180°C (Dependent on pressure)
Compliance & Approvals
Fire Safe & Anti-Static
Contact UsJV090016 – Fire Safe Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150 - PDF DatasheetFire Safe Approved to API 607 4th EditionISO5211 Pad Mount

JV090016 – Fire Safe Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged ANSI 150
