Electrically Actuated Butterfly Valves

A range of butterfly valves supplied completely assembled with electric actuators which are small, lightweight and compact in design but still offering high output torques. All valve and actuator packages are tested and issued with certification confirming the actuators functionality before despatch.

JV240017 – Electrically Actuated Wafer Flange Butterfly Valve – NBR Lined

A wafer pattern butterfly valve with a ductile iron body, aluminium bronze disc and an NBR liner suitable for a wide variety of isolation duties. Supplied completely assembled with a JV-E Electric Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Electrically Operated
Size & Connections
DN40 to DN300 • PN6/10/16, ANSI150 & JIS 5/10/16K Flange
Duty
Air • Inert Gas • Oil • Water
Materials
Ductile Iron Body • Ali-Bronze Disc • NBR Liner
Pressure Rating
PN16
Temperature
-10°C to 80°C
Compliance & Approvals
3.1 Cert (on request) • EN558-1 Series 13 • Actuator Functionality Certificate
Contact UsJV240017 – Electrically Actuated Wafer Flange Butterfly Valve - NBR Lined - PDF DatasheetElectrically Actuated

JV240017 – Electrically Actuated Wafer Flange Butterfly Valve - NBR Lined

JV240041 – Electrically Actuated Wafer Butterfly Valve, Viton Lined

A wafer pattern butterfly valve with a ductile iron body, stainless steel disc and a Viton liner suitable for a wide variety of isolation duties. Supplied completely assembled with a JV-E Electric Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Electrically Operated
Size & Connections
DN40 to DN300 • Between BS4504 PN6/10/16, ANSI150, JIS10K & BS Flanges
Duty
Air • Inert Gas • Oil • Water
Materials
Ductile Iron Body • Stainless Steel Disc • Viton Liner
Pressure Rating
PN16
Temperature
-10°C to 140°C
Compliance & Approvals
EN558-1 Series 13 • Actuator Functionality Certificate
Contact UsJV240041 – Electrically Actuated Wafer Butterfly Valve, Viton Lined - PDF DatasheetElectrically Actuated

JV240041 – Electrically Actuated Wafer Butterfly Valve, Viton Lined

JV240014 – Electrically Actuated Marine Quality Wafer Butterfly Valve

A wafer pattern butterfly valve with a ductile iron body, stainless steel or aluminium bronze disc and options of an NBR, EPDM or Viton liner suitable for a wide variety of isolation duties. Supplied completely assembled with a JV-E Electric Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Electrically Operated
Size & Connections
DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR, Viton or EPDM Liner*
Pressure Rating
40-200mm PN16 • 250-1200mm PN10
Temperature
Up to 200°C (dependent on liner material, see datasheet for details)
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV240014 – Electrically Actuated Marine Quality Wafer Butterfly Valve - PDF DatasheetElectrically Actuated3.1 & 3.1 Material Certification (on request)

 JV240014 – Electrically Actuated Marine Quality Wafer Butterfly Valve

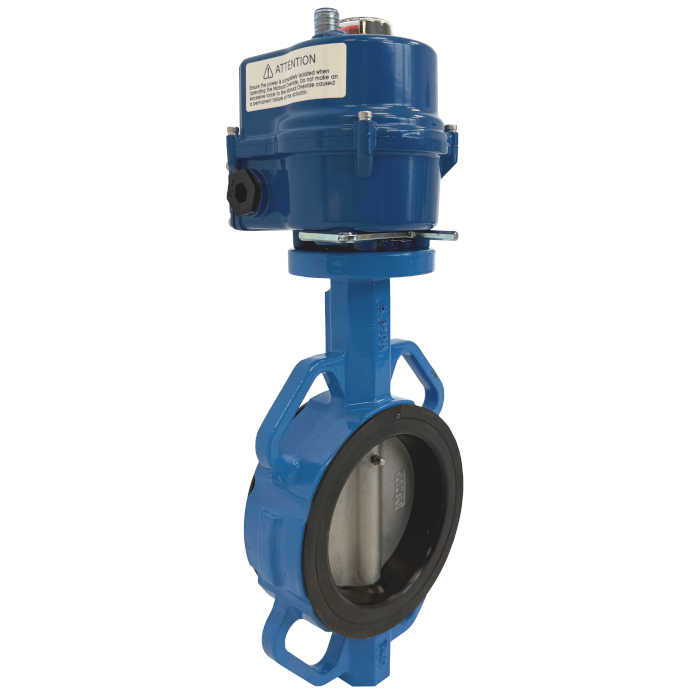

JV240001 – Electrically Actuated Wafer Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose butterfly valve with an EPDM liner, offering a long life with low maintenance. Supplied completely assembled with a JV-E Electric Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Electrically Operated
Size & Connections
DN50 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150, JIS10K & BS Flanges
Duty
Water
Materials
Epoxy Coated Cast/Ductile Iron Body • Stainless Steel Disc • EPDM Lined
Pressure Rating
25-250mm PN16 • 300mm PN10
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (CBF10/J9) • Length to EN558-1 Series 20 • Actuator Functionality Certificate
Contact UsJV240001 – Electrically Actuated Wafer Butterfly Valve, EPDM Lined – WRAS Approved - PDF DatasheetElectrically ActuatedWRAS Approved Product

JV240001 – Electrically Actuated Wafer Butterfly Valve, EPDM Lined – WRAS Approved

JV240005 – Electrically Actuated Stainless Steel Wafer Butterfly Valve, PTFE Lined

A butterfly valve with a stainless steel body and disc and PTFE liner makes this valve a cost-effective solution for a wide variety of isolation duties. Supplied completely assembled with a JV-E Electric Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Electrically Operated
Size & Connections
DN50 to DN200 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS Flanges
Duty
Air • Inert Gas • Oil • Water
Materials
Stainless Steel Body & Disc • PTFE Lined (Viton & EPDM options)
Pressure Rating
25-250mm PN16 • 300mm PN10
Temperature
-10°C to 120°C
Compliance & Approvals
Length to EN558-1 Series 20 • Actuator Functionality Certificate
Contact UsJV240005 – Electrically Actuated Stainless Steel Wafer Butterfly Valve, PTFE Lined - PDF DatasheetElectrically Actuated

JV240005 – Electrically Actuated Stainless Steel Wafer Butterfly Valve, PTFE Lined

JV241004 – Electrically Actuated (Spring Return) Wafer Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose butterfly valve with an EPDM liner, offering a long life with low maintenance. Supplied completely assembled with an SRFA-R Electric Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Electrically Operated (Spring Return)
Size & Connections
DN25 to DN50 • Wafer – Between BS4504 PN6/10/16, ANSI150, JIS10K & BS Flanges
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Lined
Pressure Rating
PN16
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (CBF10/J9) • Length to EN558-1 Series 20 • Actuator Functionality Certificate
Contact UsJV241004 – Electrically Actuated (Spring Return) Wafer Butterfly Valve, EPDM Lined – WRAS Approved - PDF DatasheetElectrically ActuatedWRAS Approved Product

JV241004 – Electrically Actuated (Spring Return) Wafer Butterfly Valve, EPDM Lined – WRAS Approved

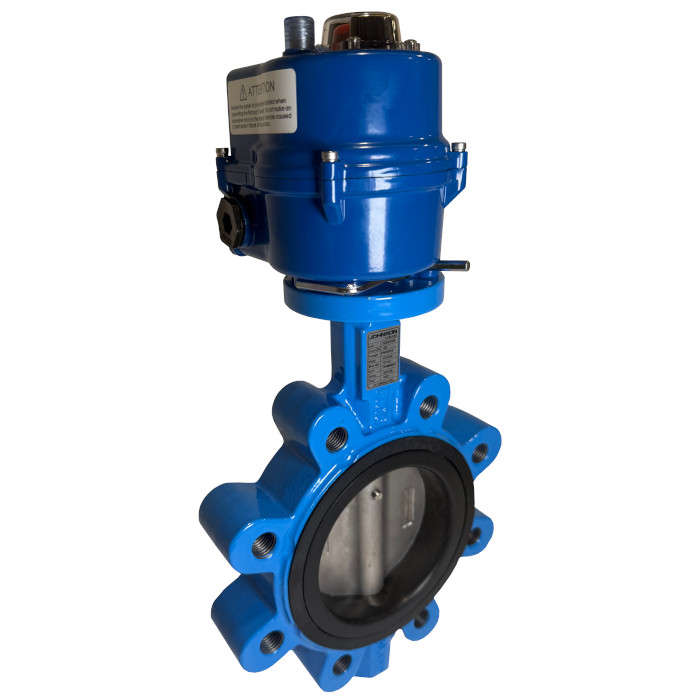

JV240003 – Electrically Actuated Lugged Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose butterfly valve with an EPDM liner, offering a long life with low maintenance. Supplied completely assembled with a JV-E Electric Actuator.

Type
Lugged & Tapped • ISO 5211 Mount • Electrically Operated
Size & Connections
DN25 to DN300 • PN16 Flange
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Lined
Pressure Rating
25-200mm PN16 • 250-300mm PN10
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (CBF10/L9) • Length to EN558-1 Series 20 • Actuator Functionality Certificate
Contact UsJV240003 – Electrically Actuated Lugged Butterfly Valve, EPDM Lined – WRAS Approved - PDF DatasheetElectrically ActuatedWRAS Approved Product

JV240003 – Electrically Actuated Lugged Butterfly Valve, EPDM Lined – WRAS Approved

JV240043 – Electrically Actuated Lugged Butterfly Valve, Viton Lined

A lugged pattern butterfly valve with a ductile iron body, stainless steel disc and a Viton liner suitable for a wide variety of isolation duties. Supplied completely assembled with a JV-E Electric Actuator.

Type
Lugged & Tapped • ISO 5211 Mount • Electrically Operated
Size & Connections
DN40 to DN300 • PN16 Flange
Duty
Air • Inert Gas • Oil • Water
Materials
Ductile Iron Body • Stainless Steel Disc • Viton Liner
Pressure Rating
PN16
Temperature
-20°C to 140°C
Compliance & Approvals
Length to EN558-1 Series 20 • Actuator Functionality Certificate
Contact UsJV240043 – Electrically Actuated Lugged Butterfly Valve, Viton Lined - PDF DatasheetElectrically Actuated

JV240043 – Electrically Actuated Lugged Butterfly Valve, Viton Lined

JV240016 – Electrically Actuated Marine Quality Double Flange Butterfly Valve

A double flange pattern butterfly valve with a ductile iron body, stainless steel or aluminium bronze disc and options of an NBR, EPDM or Viton liner suitable for a wide variety of isolation duties. Supplied completely assembled with a JV-E Electric Actuator.

Type
Double Flange • ISO 5211 Mount • Electrically Operated
Size & Connections
DN40 to DN1200 • PN6/10/16/25, ANSI150 & JIS 5/10K Flange*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR, Viton or EPDM Liner*
Pressure Rating
40-200mm PN16 • 250-1200mm PN10
Temperature
Up to 200°C (dependent on liner material, see datasheet for details)
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 13
* Specify when enquiring
Contact UsJV240016 – Electrically Actuated Marine Quality Double Flange Butterfly Valve - PDF DatasheetElectrically Actuated3.1 & 3.1 Material Certification (on request)

JV240016 – Electrically Actuated Marine Quality Double Flange Butterfly Valve

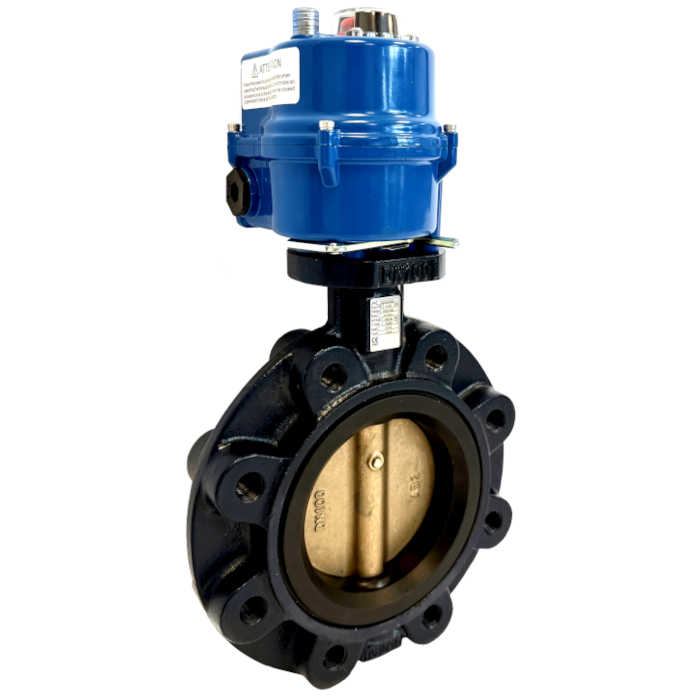

JV240015 – Electrically Actuated Marine Quality Lugged Butterfly Valve

A lugged pattern butterfly valve with a ductile iron body, stainless steel or aluminium bronze disc and options of an NBR, EPDM or Viton liner suitable for a wide variety of isolation duties. Supplied completely assembled with a JV-E Electric Actuator.

Type
Lugged & Tapped • ISO 5211 Mount • Electrically Operated
Size & Connections
DN40 to DN1200 • PN6/10/16/25, ANSI150 & JIS 5/10K Flange*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR, Viton or EPDM Liner*
Pressure Rating
40-200mm PN16 • 250-1200mm PN10
Temperature
Up to 200°C (dependent on liner material, see datasheet for details)
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV240015 – Electrically Actuated Marine Quality Lugged Butterfly Valve - PDF DatasheetElectrically Actuated3.1 & 3.1 Material Certification (on request)

JV240015 – Electrically Actuated Marine Quality Lugged Butterfly Valve
