JV240007 – Electrically Actuated Brass Nickel Plated Ball Valve

Full bore ball valve which is suited for many applications offering reliability at an economical cost. Supplied completely assembled with a JV-E Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 80mm (3″) BSPP Female
Duty
Air • Gas • Oil • Water
Materials
Nickel Plated Brass Body • PTFE Seat • Chrome Plated Brass Ball
Pressure Rating
PN40
Temperature
0°C to 120°C (Dependent on size & pressure)
Compliance & Approvals
Actuator Functionality Certificate
Contact UsJV240007 – Electrically Actuated Brass Nickel Plated Ball Valve - PDF DatasheetElectrically Actuated

JV240007 – Electrically Actuated Brass Nickel Plated Ball Valve

JV241002 – Electrically Actuated (Spring Return) Brass Nickel Plated Ball Valve

Full bore ball valve which is suited for many applications offering reliability at an economical cost. Supplied completely assembled with a SRFA-R Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated (Spring Return)
Size & Connections
6mm (1/4″) to 80mm (3″) BSPP Female
Duty
Air • Gas • Oil • Water
Materials
Nickel Plated Brass Body • PTFE Seat • Chrome Plated Brass Ball
Pressure Rating
PN40
Temperature
0°C to 120°C (Dependent on size & pressure)
Compliance & Approvals
Actuator Functionality Certificate
Contact UsJV241002 – Electrically Actuated (Spring Return) Brass Nickel Plated Ball Valve - PDF DatasheetElectrically Actuated

JV241002 – Electrically Actuated (Spring Return) Brass Nickel Plated Ball Valve

JV240031 – Electrically Actuated Brass Nickel Plated WRAS Approved Ball Valve

A WRAS approved (V4500 range) nickel plated, brass-bodied ball valve suitable for potable water. Supplied completely assembled with a JV-E Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 50mm (2″) BSPP Female
Duty
Air • Gas • Oil • Water
Materials
Nickel Plated Brass Body • PTFE Seat • Chrome Plated Brass Ball
Pressure Rating
PN40
Temperature
-20°C to 95°C (Dependent on pressure)
Compliance & Approvals
WRAS • Actuator Functionality Certificate
Contact UsJV240031 – Electrically Actuated Brass Nickel Plated WRAS Approved Ball Valve - PDF DatasheetWRAS Approved ProductElectrically Actuated

JV240031 – Electrically Actuated Brass Nickel Plated WRAS Approved Ball Valve

JV241006 – Electrically Actuated (Spring Return) Brass Nickel Plated WRAS Approved Ball Valve

A WRAS approved (V4500 range) nickel plated, brass-bodied ball valve suitable for potable water. Supplied completely assembled with a SRFA-R Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated (Spring Return)
Size & Connections
6mm (1/4″) to 50mm (2″) BSPP Female
Duty
Air • Gas • Oil • Water
Materials
Nickel Plated Brass Body • PTFE Seat • Chrome Plated Brass Ball
Pressure Rating
PN40
Temperature
-20°C to 95°C (Dependent on pressure)
Compliance & Approvals
WRAS • Actuator Functionality Certificate
Contact UsJV241006 – Electrically Actuated (Spring Return) Brass Nickel Plated WRAS Approved Ball Valve - PDF DatasheetWRAS Approved ProductElectrically Actuated

JV241006 – Electrically Actuated (Spring Return) Brass Nickel Plated WRAS Approved Ball Valve

JV240008 – Electrically Actuated Three-Piece Stainless Steel Ball Valve

A versatile and robust three-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPP Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240008 – Electrically Actuated Three-Piece Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV240008 – Electrically Actuated Three-Piece Stainless Steel Ball Valve

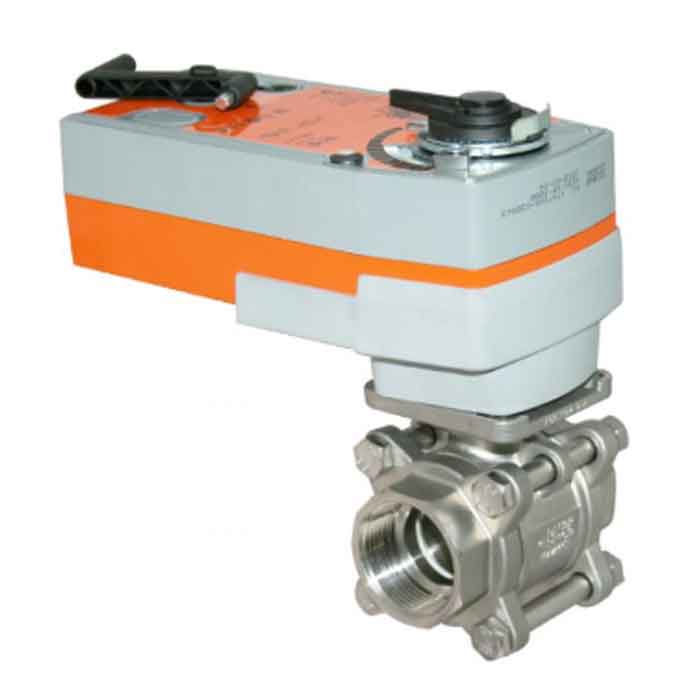

JV241003 – Electrically Actuated (Spring Return) Three-Piece Stainless Steel Ball Valve

A versatile and robust three-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a SRFA-R Electric Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Electrically Operated (Spring Return)
Size & Connections
6mm (1/4″) to 100mm (4″) BSPP Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV241003 – Electrically Actuated (Spring Return) Three-Piece Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV241003 – Electrically Actuated (Spring Return) Three-Piece Stainless Steel Ball Valve

JV240009 – Electrically Actuated Fire Safe Stainless Steel Ball Valve

A high performance, fire-safe stainless steel bodied full bore ball valve suitable for various heavy duty applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Piece • Full Bore • ISO 5211 Mount • Fire Safe • Electrically Operated
Size & Connections
15mm (1/2″) to 100mm (3″) BSP Female • Butt & Socket Weld (on request)
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • CTFE Seat
Pressure Rating
15-25mm PN138 • 32-50mm PN103 • 65-80mm PN63
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240009 – Electrically Actuated Fire Safe Stainless Steel Ball Valve - PDF DatasheetFire Safe Approved to API 607 4th EditionElectrically Actuated

JV240009 – Electrically Actuated Fire Safe Stainless Steel Ball Valve

JV240011 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240011 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV240011 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve

JV240010 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
6mm (1/4″) to 100mm (4″) BSPT Female
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
6-25mm PN82 • 32-40mm PN69 • 50-100mm PN30
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240010 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve - PDF DatasheetElectrically Actuated

JV240010 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve

JV240012 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN200 • PN16/40 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
15-50mm PN40 • 65-200mm PN16
Temperature
-25°C to 200°C (Dependent on size & pressure)
Contact UsJV240012 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40 - PDF DatasheetElectrically Actuated

JV240012 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged PN16/40

JV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16 - PDF DatasheetElectrically Actuated

JV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

JV240034 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240034 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16 - PDF DatasheetElectrically Actuated

JV240034 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged PN16

JV240013 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150

A versatile and robust two-piece stainless steel ball valve suitable for a wide range of isolation applications. Supplied completely assembled with a JV-E Electric Actuator.

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN100 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • R-PTFE (15%) Seat
Pressure Rating
20 Bar (12 Bar for steam)
Temperature
-25°C to 200°C (Dependent on pressure)
Contact UsJV240013 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetElectrically Actuated

JV240013 – Electrically Actuated Two-Piece Stainless Steel Ball Valve, Flanged ANSI 150

JV240035 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240035 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetElectrically Actuated

JV240033 – Electrically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged PN16

JV240036 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a JV-E Electric Actuator.

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount • Electrically Operated
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)
Contact UsJV240036 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150 - PDF DatasheetElectrically Actuated

JV240036 – Electrically Actuated Three-Way T-Ported Stainless Steel Ball Valve, Flanged ANSI 150
