Elster Honeywell Oil Meters

Oil meters form Elster Honeywell are suitable for oils, diesel and many other oil-like liquids. They are used for efficient consumption measurement of heat burners and various combustion engines. A reliable solution for any application where oil is consumed.

Elster_Logo

FC-VZO – Residential / Domestic Low Flow Oil Meter



The Elster Honeywell FC-VZO meter is suitable for a variety of low-flow duties including checking and totalising fuel for heating systems, diesel engines and recording draw off from storage tanks in residential, domestic and small marine vessel installations.

Type
Rotary Piston (Positive Displacement)
Size & Connections
4mm (1/8″) & 6mm (1/4″) • BSP Female (on bottom plate)
Duty
Light & Medium Grade Oil (Up to a 6cSt viscosity) • Diesel Fuel
Max. Pressure & Temperature
25 bar • 80°C
Communications
Factory Fitted Reed Switch Pulse (optional)
Compliance & Approvals
Accuracy ±1% • IP50 Protection Class
Contact UsFC-VZO - Residential / Domestic Low Flow Oil Meter - PDF DatasheetElster now part of Honeywell

FC-VZO - Residential / Domestic Low Flow Oil Meter

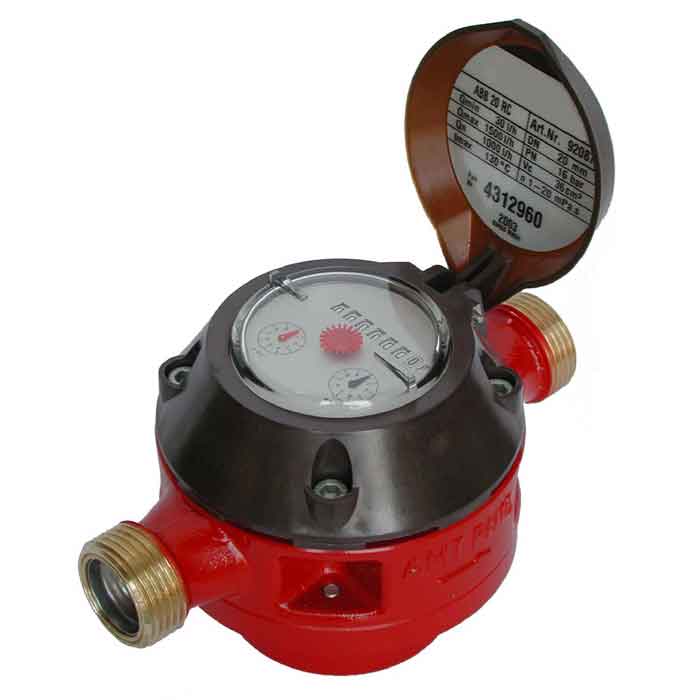

FB-VZO – Commercial, Industrial & Marine Oil Meter – Threaded



The Elster Honeywell FB-VZO meter is suitable for a variety of medium to high flow duties including checking and totalising fuel for heating systems, diesel engines and recording draw off from storage tanks in commercial, industrial, marine and off-shore installations.

Type
Rotary Piston (Positive Displacement)
Size & Connections
15mm (1/2″) to 25mm (1″) • BSP Male Unions
Duty
Light, Medium & Heavy Grade Oil  • Diesel Fuel
Max. Pressure & Temperature
16 bar • 130°C
Communications
Factory Fitted Reed Switch Pulse (optional)
Compliance & Approvals
Accuracy ±1% • IP50 Protection Class • Lloyds Register & DNV-GL Type Approved
Contact UsFB-VZO - Commercial, Industrial & Marine Oil Meter - Threaded - PDF DatasheetLloyds Register Type ApprovedDNV Germanischer Lloyd Type Approved

FB-VZO - Commercial, Industrial & Marine Oil Meter - Threaded

FA-VZO – Commercial, Industrial & Marine Oil Meter – Flanged

The Elster Honeywell FA-VZO meter is suitable for a variety of medium to high flow duties including checking and totalising fuel for heating systems, diesel engines and recording draw off from storage tanks in commercial, industrial, marine and off-shore installations.

Type
Rotary Piston (Positive Displacement)
Size & Connections
DN15 to DN50 • PN16/25 Flanged
Duty
Light, Medium & Heavy Grade Oil  • Diesel Fuel
Max. Pressure & Temperature
25 bar • 130°C
Communications
Factory Fitted Reed Switch Pulse (optional)
Compliance & Approvals
Accuracy ±1% • IP50 Protection Class • Lloyds Register & DNV-GL Type Approved
Contact UsFA-VZO - Commercial, Industrial & Marine Oil Meter - Flanged - PDF DatasheetLloyds Register Type ApprovedDNV Germanischer Lloyd Type Approved

FA-VZO - Commercial, Industrial & Marine Oil Meter - Flanged
