Manually Operated Actuators
Levers and handwheel operated actuators designed for quarter turn applications on ball valves, butterfly valves, plug valves and dampers.
JV241000 – Ductile Iron Quarter Turn Lever & Notch Plate
The JV241000 ductile iron lever has a stainless steel notch plate with an open and shut indication. It is usually used on butterfly valves, however, it can be used on other valves where compatible.
Type
Quarter-Turn Lever with Notch Plate & Open/Shut Indicator
ISO 5211 Mountings
F07 • F10
Square Size (mm)
11×11 • 14×14 • 17×17 • 22×22
Material
Ductile Iron with Stainless Steel Notch Plate
JV241001 – Aluminium Manual Gearbox Actuator
The JV241001 is an economical and robust gearbox, offering a long life with low maintenance. The gearbox has an open and shut indicator and is usually used on butterfly and ball valves.
Type
Quarter-Turn Manual Gearbox with Open/Shut Indicator
ISO 5211 Mountings
F05 • F07 • F10 • F12 • F14
Input Torque
18.5Nm to 150Nm
Output Torque
150Nm to 1200Nm
Body Material
Aluminium Alloy

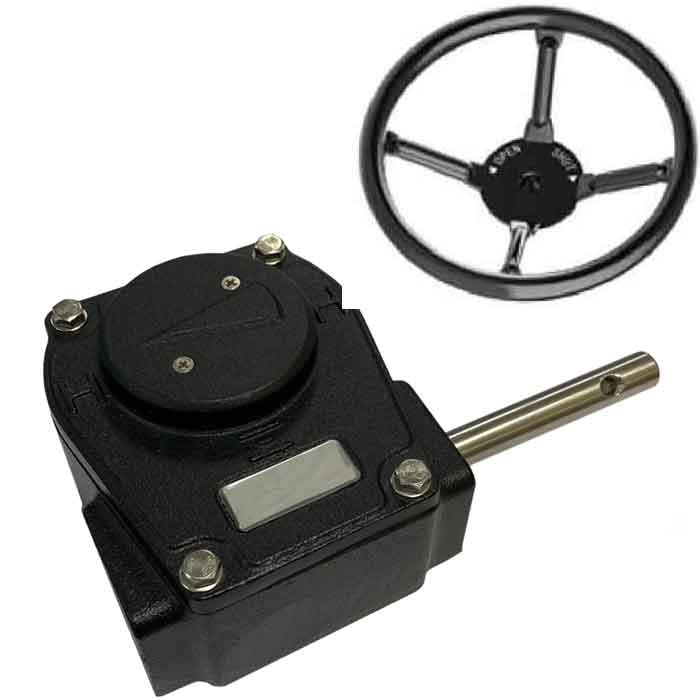

JV240107 – Ductile Iron Manual Gearbox Actuator
The JV240107 is a heavy-duty manual quarter-turn gearbox suitable for butterfly valves, ball valves and dampers. The gearbox is supplied with either cast or welded handwheel.
Type
Quarter-Turn Manual Gearbox with Open/Shut Indicator
ISO 5211 Mountings
F05 • F07 • F10 • F12 • F14 • F16 • F25 • F30 • F40
Output Torque
120Nm to 32000Nm
Body Material
Ductile Iron
JV240108 – Stainless Steel Manual Gearbox Actuator
The JV240108 is a heavy-duty manual quarter-turn gearbox suitable for butterfly valves, ball valves and dampers. The gearbox is supplied with a stainless steel welded handwheel as standard.
Type
Quarter-Turn Manual Gearbox with Open/Shut Indicator
ISO 5211 Mountings
F05 • F07 • F10 • F12 • F14 • F16
Output Torque
120Nm to 2000Nm
Body Material
Stainless Steel
JV241010 – De-Clutchable Gearbox with Manual Override for Pneumatic Actuator
The JV241010 worm gear gearbox is designed to sandwich in-between a valve and pneumatic actuator to provide manual operation of the valve in the event of a loss of control air supply.
Type
De-Clutchable Gearbox • Manual Override
ISO 5211 Mountings
F05 • F07 • F10 • F12 • F14 • F16 • F20 • F25
Input Torque
50Nm to 200Nm
Output Torque
100Nm to 6000Nm
Body Material
Aluminium Alloy
