Pneumatically Actuated Butterfly Valves

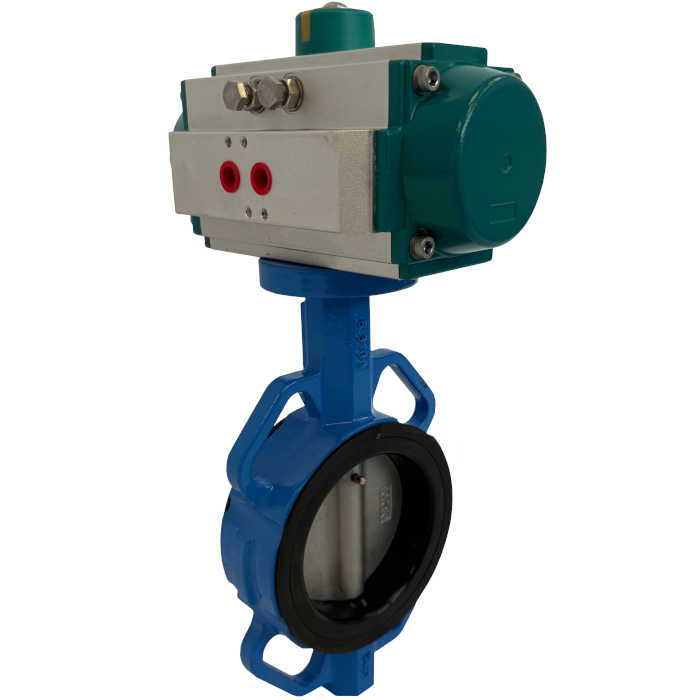

A range of butterfly valves supplied completely assembled with pneumatic single acting (spring return) or double acting actuators. All valve and actuator packages are tested and issued with certification confirming the actuators functionality before despatch.

JV240002 – Pneumatically Actuated Wafer Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose butterfly valve with an EPDM liner, offering a long life with low maintenance. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN50 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150, JIS10K & BS Flanges
Duty
Water
Materials
Epoxy Coated Cast/Ductile Iron Body • Stainless Steel Disc • EPDM Lined
Pressure Rating
25-250mm PN16 • 300mm PN10
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (CBF10/J9) • Length to EN558-1 Series 20 • Actuator Functionality Certificate
Contact UsJV240002 – Pneumatically Actuated Wafer Butterfly Valve, EPDM Lined – WRAS Approved - PDF DatasheetPneumatically ActuatedWRAS Approved Product

JV240002 – Pneumatically Actuated Wafer Butterfly Valve, EPDM Lined – WRAS Approved

JV240030 – Pneumatically Actuated Wafer Flange Butterfly Valve – NBR Lined

A wafer pattern butterfly valve with a ductile iron body, aluminium bronze disc and an NBR liner suitable for a wide variety of isolation duties. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN40 to DN300 • PN6/10/16, ANSI150 & JIS 5/10/16K Flange
Duty
Air • Inert Gas • Oil • Water
Materials
Ductile Iron Body • Ali-Bronze Disc • NBR Liner
Pressure Rating
PN16
Temperature
-10°C to 80°C
Compliance & Approvals
3.1 Cert (on request) • EN558-1 Series 13 • Actuator Functionality Certificate
Contact UsJV240030 – Pneumatically Actuated Wafer Flange Butterfly Valve - NBR Lined - PDF DatasheetPneumatically Actuated

 JV240030 – Pneumatically Actuated Wafer Flange Butterfly Valve - NBR Lined

JV240004 – Pneumatically Actuated Lugged Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose butterfly valve with an EPDM liner, offering a long life with low maintenance. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Lugged & Tapped • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN25 to DN300 • PN16 Flange
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Lined
Pressure Rating
25-200mm PN16 • 250-300mm PN10
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (CBF10/L9) • Length to EN558-1 Series 20 • Actuator Functionality Certificate
Contact UsJV240004 – Pneumatically Actuated Lugged Butterfly Valve, EPDM Lined – WRAS Approved - PDF DatasheetPneumatically ActuatedWRAS Approved Product

JV240004 – Pneumatically Actuated Lugged Butterfly Valve, EPDM Lined – WRAS Approved

JV240006 – Pneumatically Actuated Stainless Steel Wafer Butterfly Valve, PTFE Lined

A butterfly valve with a stainless steel body and disc and PTFE liner makes this valve a cost-effective solution for a wide variety of isolation duties. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN50 to DN200 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS Flanges
Duty
Air • Inert Gas • Oil • Water
Materials
Stainless Steel Body & Disc • PTFE Lined (Viton & EPDM options)
Pressure Rating
25-250mm PN16 • 300mm PN10
Temperature
-10°C to 120°C
Compliance & Approvals
Length to EN558-1 Series 20 • Actuator Functionality Certificate
Contact UsJV240006 – Pneumatically Actuated Stainless Steel Wafer Butterfly Valve, PTFE Lined - PDF DatasheetPneumatically Actuated

JV240006 – Pneumatically Actuated Stainless Steel Wafer Butterfly Valve, PTFE Lined

JV240026 – Pneumatically Actuated Marine Quality Wafer Butterfly Valve

A wafer pattern butterfly valve with a ductile iron body, stainless steel or aluminium bronze disc and options of an NBR, EPDM or Viton liner suitable for a wide variety of isolation duties. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR, Viton or EPDM Liner*
Pressure Rating
40-200mm PN16 • 250-1200mm PN10
Temperature
Up to 200°C (dependent on liner material, see datasheet for details)
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV240026 – Pneumatically Actuated Marine Quality Wafer Butterfly Valve - PDF DatasheetPneumatically Actuated3.1 & 3.1 Material Certification (on request)

JV240026 – Pneumatically Actuated Marine Quality Wafer Butterfly Valve

JV240027 – Pneumatically Actuated Marine Quality Lugged Butterfly Valve

A lugged pattern butterfly valve with a ductile iron body, stainless steel or aluminium bronze disc and options of an NBR, EPDM or Viton liner suitable for a wide variety of isolation duties. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Lugged & Tapped • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN40 to DN1200 • PN6/10/16/25, ANSI150 & JIS 5/10K Flange*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR, Viton or EPDM Liner*
Pressure Rating
40-200mm PN16 • 250-1200mm PN10
Temperature
Up to 200°C (dependent on liner material, see datasheet for details)
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV240027 – Pneumatically Actuated Marine Quality Lugged Butterfly Valve - PDF DatasheetPneumatically Actuated3.1 & 3.1 Material Certification (on request)

JV240027 – Pneumatically Actuated Marine Quality Lugged Butterfly Valve

JV240028 – Pneumatically Actuated Marine Quality Double Flange Butterfly Valve

A double flange pattern butterfly valve with a ductile iron body, stainless steel or aluminium bronze disc and options of an NBR, EPDM or Viton liner suitable for a wide variety of isolation duties. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Double Flange • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN40 to DN1200 • PN6/10/16/25, ANSI150 & JIS 5/10K Flange*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR, Viton or EPDM Liner*
Pressure Rating
40-200mm PN16 • 250-1200mm PN10
Temperature
Up to 200°C (dependent on liner material, see datasheet for details)
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 13
* Specify when enquiring
Contact UsJV240028 – Pneumatically Actuated Marine Quality Double Flange Butterfly Valve - PDF DatasheetPneumatically Actuated3.1 & 3.1 Material Certification (on request)

JV240028 – Pneumatically Actuated Marine Quality Double Flange Butterfly Valve

JV240044 – Pneumatically Actuated Lugged Butterfly Valve, Viton Lined

A wafer pattern butterfly valve with a ductile iron body, stainless steel disc and a Viton liner suitable for a wide variety of isolation duties. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Lugged & Tapped • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN40 to DN300 • PN16 Flange
Duty
Air • Inert Gas • Oil • Water
Materials
Ductile Iron Body • Stainless Steel Disc • Viton Liner
Pressure Rating
PN16
Temperature
-20°C to 140°C
Compliance & Approvals
Length to EN558-1 Series 20 • Actuator Functionality Certificate
Contact UsJV240044 – Pneumatically Actuated Lugged Butterfly Valve, Viton Lined - PDF DatasheetPneumatically Actuated

JV240043 – Electrically Actuated Lugged Butterfly Valve, Viton Lined

JV240042 – Pneumatically Actuated Wafer Butterfly Valve, Viton Lined

A wafer pattern butterfly valve with a ductile iron body, stainless steel disc and a Viton liner suitable for a wide variety of isolation duties. Supplied completely assembled with a VT Pneumatic Actuator.

Type
Multi-Flange Wafer • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN40 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150, JIS10K & BS Flanges
Duty
Air • Inert Gas • Oil • Water
Materials
Ductile Iron Body • Stainless Steel Disc • Viton Liner
Pressure Rating
PN16
Temperature
-10°C to 140°C
Compliance & Approvals
Length to EN558-1 Series 20 • Actuator Functionality Certificate
Contact UsJV240042 – Pneumatically Actuated Wafer Butterfly Valve, Viton Lined - PDF DatasheetPneumatically Actuated

JV240042 – Pneumatically Actuated Wafer Butterfly Valve, Viton Lined
