Cast & Ductile Iron Butterfly Valves

General purpose butterfly valves constructed with cast or ductile iron bodies with various liner materials.

JV52N – Ductile Iron Wafer Butterfly Valve, NBR Lined

High-quality butterfly valve with an NBR liner, offering a long life with low maintenance. Manually operated, supplied with a lockable lever or gearbox.

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150 & JIS 5/10/16 Flanges
Duty
Air • Inert Gas • Oil • Water
Materials
Epoxy Coated Ductile Iron Body • Aluminium Bronze Disc • NBR Liner
Pressure Rating
PN16
Temperature
-15°C to 80°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV52N – Ductile Iron Wafer Butterfly Valve, NBR Lined- PDF DatasheetISO5211 Pad Mount

JV52N – Ductile Iron Wafer Butterfly Valve, NBR Lined

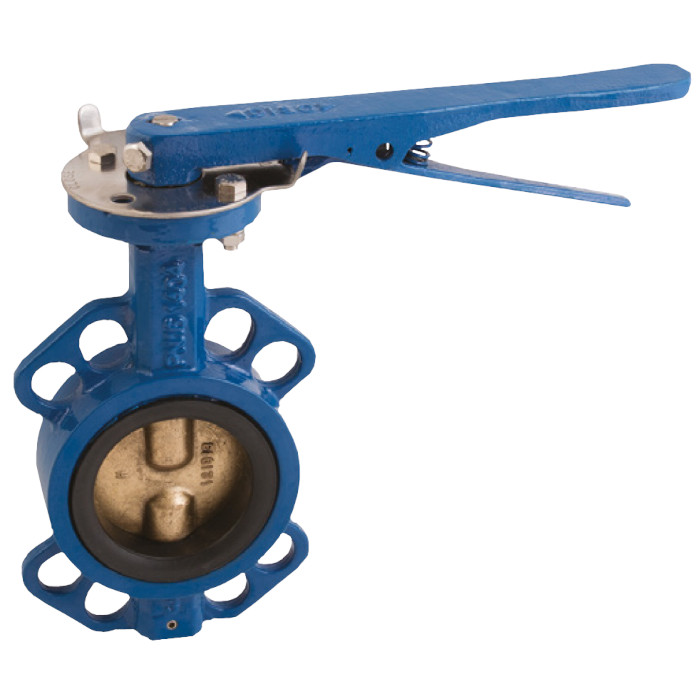

JV100003 – Ductile Iron Wafer Butterfly Valve, NBR Lined

Butterfly valve with an NBR (Buna) liner suitable for a wide range of duties. Manually operated, supplied with a lockable lever or gearbox.

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN600 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS D/E Flanges
Duty
Air • Inert Gas • Oil • Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • NBR Liner
Pressure Rating
25-300mm PN16 • 350-600mm PN10
Temperature
-10°C to 80°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV100003 – Ductile Iron Wafer Butterfly Valve, NBR Lined & Stainless Steel Disc - PDF DatasheetISO5211 Pad Mount

JV100003 – Ductile Iron Wafer Butterfly Valve, NBR Lined & Stainless Steel Disc

JV100001 – Ductile Iron Wafer Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose valve with an EPDM liner, offering a long life with low maintenance. Manually operated, supplied with a lockable lever.

Type
Multi-Flange Wafer
Size & Connections
DN50 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150 & JIS5/10/16K Flanges
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-20°C to 120°C
Compliance & Approvals
WRAS (S52) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV100001 – Cast Iron Wafer WRAS Approved Butterfly Valve, EPDM Lined & Stainless Steel Disc - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

JV100001 – Ductile Iron Wafer Butterfly Valve, EPDM Lined - WRAS Approved

JV100032 – Ductile Iron Wafer Butterfly Valve, Silicone Lined for Food Duty

Silicone lined butterfly valve to FDA requirements with a stainless steel disc and a cast iron body, suitable for food and drink duties. Manually operated, supplied with a lockable lever.

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN300 • Wafer – Between BS4504 PN10/16 & ANSI150 Flanges
Duty
Water • Food • Drink
Materials
Ductile Iron Body • Stainless Steel Disc • Silicone Liner
Pressure Rating
PN16
Temperature
-40°C to 150°C
Compliance & Approvals
EN558-1 Series 13 • ISO 5211 Top Mounting • FDA Silicone Lined • BV Type Approval
Contact UsJV100032 – Cast Iron Wafer Butterfly Valve, Silicon Lined - PDF DatasheetISO5211 Pad Mount

JV100032 – Ductile Iron Wafer Butterfly Valve, Silicon Lined for Food Duty

JV100002 – Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose lugged and tapped butterfly valve with an EPDM liner. Manually operated, supplied with a lockable lever or gearbox.

Type
Lugged & Tapped
Size & Connections
DN25 to DN600 • PN16 Flange
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
25-300mm PN16 • 450-600mm PN10
Temperature
-20°C to 120°C
Compliance & Approvals
WRAS (S62/L9 Series) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV100002 – Ductile Iron Lugged Butterfly Valve, EPDM Lined & Stainless Steel Disc - WRAS Approved - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

JV100002 – Ductile Iron Lugged Butterfly Valve, EPDM Lined & Stainless Steel Disc - WRAS Approved

JV101003 – Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined – PN25 WRAS Approved

A higher PN25 pressure rated butterfly valve with WRAS approval valve suitable for potable water. Manually operated, supplied with a lockable lever or gearbox.

Type
Lugged & Tapped
Size & Connections
DN50 to DN200 • PN25 Flange
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN25
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (2302 / 2502 Series) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV101003 – Ductile Iron Lugged Butterfly Valve, EPDM Lined & Stainless Steel Disc - WRAS Approved - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

JV101003 – Ductile Iron Lugged Butterfly Valve, EPDM Lined & Stainless Steel Disc - WRAS Approved

JV100004 – Ductile Iron Lugged & Tapped Butterfly Valve, NBR Lined

General purpose lugged and tapped butterfly valve with an NBR liner. Manually operated, supplied with a lockable lever or gearbox.

Type
Lugged & Tapped
Size & Connections
DN25 to DN600 • PN16 Flange
Duty
Air • Inert Gas • Oil • Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • NBR Liner
Pressure Rating
25-300mm PN16 • 350-600mm PN10
Temperature
-10°C to 80°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV100004 – Ductile Iron Lugged Butterfly Valve, NBR Lined & Stainless Steel Disc - PDF DatasheetISO5211 Pad Mount

JV100004 – Ductile Iron Lugged Butterfly Valve, NBR Lined & Stainless Steel Disc

JV100011 – Ductile Iron Lugged & Tapped Butterfly Valve, NBR Lined – ANSI 150

General purpose butterfly valve with an NBR liner, lugged and tapped to ANSI 150. Manually operated, supplied with a lockable lever or gearbox.

Type
Lugged & Tapped
Size & Connections
DN50 to DN200 • ANSI 150 Flange
Duty
Air • Inert Gas • Oil • Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • NBR Liner
Pressure Rating
PN16
Temperature
-10°C to 80°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV100011 – Ductile Iron Lugged Butterfly Valve, NBR Lined - PDF DatasheetISO5211 Pad Mount

JV100011 – Ductile Iron Lugged Butterfly Valve, NBR Lined

JV100010 – Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined – ANSI 150 WRAS Approved

WRAS approved general purpose butterfly valve with an EPDM liner, lugged and tapped to ANSI 150. Manually operated, supplied with a lockable lever or gearbox.

Type
Lugged & Tapped
Size & Connections
DN50 to DN200 • ANSI 150 Flange
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (L9 Series) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV100010 – Ductile Iron Lugged Butterfly Valve, EPDM Lined - WRAS Approved - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

JV100010 – Ductile Iron Lugged Butterfly Valve, EPDM Lined - WRAS Approved

JV57N – Marine Ductile Iron Wafer Butterfly Valve, NBR Lined

Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-15°C to 80°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV57N – Marine Ductile Iron Wafer Butterfly Valve, NBR Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV57N – Marine Ductile Iron Wafer Butterfly Valve, NBR Lined

JV57E – Marine Ductile Iron Wafer Butterfly Valve, EPDM Lined

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV57E – Marine Ductile Iron Wafer Butterfly Valve, EPDM Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV57E – Marine Ductile Iron Wafer Butterfly Valve, EPDM Lined

JV57V – Marine Ductile Iron Wafer Butterfly Valve, Viton Lined

Marine quality butterfly valve with a bonded Viton liner suitable for many high-temperature duties (not hot water).  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges*
Duty
Air • Inert Gas • Oil • Seawater • Cold Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • Viton Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
0°C to 200°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV57V – Marine Ductile Iron Wafer Butterfly Valve, Viton Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV57V – Marine Ductile Iron Wafer Butterfly Valve, Viton Lined

JV64N – Marine Ductile Iron Lugged & Tapped Butterfly Valve, NBR Lined

Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Lugged & Tapped
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-15°C to 80°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV64N – Marine Ductile Iron Lugged Butterfly Valve, NBR Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV64N – Marine Ductile Iron Lugged Butterfly Valve, NBR Lined

JV64E – Marine Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Lugged & Tapped
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV64E – Marine Ductile Iron Lugged Butterfly Valve, EPDM Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV64E – Marine Ductile Iron Lugged Butterfly Valve, EPDM Lined



JV64V – Marine Ductile Iron Lugged & Tapped Butterfly Valve, Viton Lined

Marine quality butterfly valve with a bonded Viton liner suitable for many high-temperature duties (not hot water).  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Lugged & Tapped
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Cold Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • Viton Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
0°C to 200°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV64V – Marine Ductile Iron Lugged Butterfly Valve, Viton Lined- PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV64V – Marine Ductile Iron Lugged Butterfly Valve, Viton Lined

JV36N – Marine Ductile Iron Double Flange Butterfly Valve, NBR Lined – JIS F7480 Length

Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Double Flanged
Size & Connections
DN40 to DN600 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-15°C to 80°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • JIS F7480
* Specify when enquiring
Contact UsJV36N – Marine Ductile Iron Double Flange Butterfly Valve, NBR Lined - JIS F7480 Length - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV36N – Marine Ductile Iron Double Flange Butterfly Valve, NBR Lined - JIS F7480 Length

JV36E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined – JIS F7480 Length

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Double Flanged
Size & Connections
DN40 to DN600 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • JIS F7480
* Specify when enquiring
Contact UsJV36E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined - JIS F7480 Length - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV36E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined - JIS F7480 Length

JV36V – Marine Ductile Iron Double Flange Butterfly Valve, Viton Lined – JIS F7480 Length

Marine quality butterfly valve with a bonded Viton liner suitable for many high-temperature duties (not hot water).  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Double Flanged
Size & Connections
DN40 to DN600 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Cold Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • Viton Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
0°C to 200°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • JIS F7480
* Specify when enquiring
Contact UsJV36V – Marine Ductile Iron Double Flange Butterfly Valve, Viton Lined - JIS F7480 Length - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV36V – Marine Ductile Iron Double Flange Butterfly Valve, Viton Lined - JIS F7480 Length

JV46N – Marine Ductile Iron Double Flange Butterfly Valve, NBR Lined – EN558-1 Series 13 Length

Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Double Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-15°C to 80°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 13
* Specify when enquiring
Contact UsJV46N – Marine Ductile Iron Double Flange Butterfly Valve, NBR Lined - EN558-1 Series 13 Length - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV46N – Marine Ductile Iron Double Flange Butterfly Valve, NBR Lined - EN558-1 Series 13 Length

JV46E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined – EN558-1 Series 13 Length

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Double Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 13
* Specify when enquiring
Contact UsJV46E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined - EN558-1 Series 13 Length - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV46E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined - EN558-1 Series 13 Length

JV46V – Marine Ductile Iron Double Flange Butterfly Valve, Viton Lined – EN558-1 Series 13 Length

Marine quality butterfly valve with a bonded Viton liner suitable for many high-temperature duties (not hot water).  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Double Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Cold Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • Viton Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
0°C to 200°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 13
* Specify when enquiring
Contact UsJV46V – Marine Ductile Iron Double Flange Butterfly Valve, Viton Lined - EN558-1 Series 13 Length - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV46V – Marine Ductile Iron Double Flange Butterfly Valve, Viton Lined - EN558-1 Series 13 Length

JV60N – Marine Ductile Iron Mono Flange Butterfly Valve, NBR Lined

Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Mono Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-15°C to 80°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV60N – Marine Ductile Iron Mono Flange Butterfly Valve, NBR Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV60N – Marine Ductile Iron Mono Flange Butterfly Valve, NBR Lined

JV60E – Marine Ductile Iron Mono Flange Butterfly Valve, EPDM Lined

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Mono Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV60E – Marine Ductile Iron Mono Flange Butterfly Valve, EPDM Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV60E – Marine Ductile Iron Mono Flange Butterfly Valve, EPDM Lined

JV60V – Marine Ductile Iron Mono Flange Butterfly Valve, Viton Lined

Marine quality butterfly valve with a bonded Viton liner suitable for many high-temperature duties (not hot water).  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Mono Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Cold Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • Viton Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
0°C to 200°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV60V – Marine Ductile Iron Mono Flange Butterfly Valve, Viton Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV60V – Marine Ductile Iron Mono Flange Butterfly Valve, Viton Lined

JV64S – Marine Ductile Iron Lugged & Tapped Butterfly Valve, Silicone Lined

Marine quality butterfly valve with a bonded Silicone liner suitable for many high-temperature duties (not hot water).  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type
Lugged & Tapped
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Cold Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • Silicone Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-40°C to 230°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring
Contact UsJV64S – Marine Ductile Iron Lugged & Tapped Butterfly Valve, Silicone Lined - PDF DatasheetISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

JV64S – Marine Ductile Iron Lugged & Tapped Butterfly Valve, Silicone Lined

JV100051 – Ductile Iron Double Flanged Butterfly Valve, EPDM Lined – WRAS Materials

Double flanged butterfly valve with an EPDM liner, offering a long life with low maintenance. Manually operated with a gearbox and handwheel as standard but can also be supplied with a electric or pneumatic actuator.

Type
Multi-Flange Wafer
Size & Connections
DN80 to DN600 • Flanged PN16
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Ductile Iron Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS Materials • ISO 5211 Top Mounting
Contact UsJV100051 – Ductile Iron Double Flanged Butterfly Valve, EPDM Lined - WRAS Materials- PDF DatasheetWRAS Approved MaterialsISO5211 Pad Mount

JV100051 – Ductile Iron Double Flanged Butterfly Valve, EPDM Lined - WRAS Materials

JV101010 – Ductile Iron Lugged & Tapped Butterfly Valve, Viton Lined

General-purpose lugged and tapped butterfly valve with a Viton liner. Manually operated, supplied with a lockable lever or gearbox.

Type
Lugged & Tapped
Size & Connections
DN25 to DN300 • PN16 Flange
Duty
Air • Inert Gas • Oil • Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • Viton Liner
Pressure Rating
25-400mm PN16 • 450-600mm PN10
Temperature
-20°C to 140°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV101010 – Ductile Iron Lugged & Tapped Butterfly Valve, Viton Lined - PDF DatasheetISO5211 Pad Mount

JV101010 – Ductile Iron Lugged & Tapped Butterfly Valve, Viton Lined

JV101007 – Ductile Iron Wafer Butterfly Valve, Viton Lined

General-purpose butterfly valve with a Viton liner suitable for a wide range of duties. Manually operated, supplied with a lockable lever or gearbox.

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN250 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS D/E Flanges
Duty
Air • Inert Gas • Oil • Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • Viton Liner
Pressure Rating
25-400mm PN16 • 450-600mm PN10
Temperature
-10°C to 140°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting
Contact UsJV101007 – Ductile Iron Wafer Butterfly Valve, Viton Lined- PDF DatasheetISO5211 Pad Mount

JV101007 – Ductile Iron Wafer Butterfly Valve, Viton Lined

JV100050 – BSI Gas Approved Ductile Iron Lugged & Tapped Butterfly Valve, NBR Lined

BSI gas approved butterfly valve with an NBR liner, lugged and tapped to PN16. Manually operated, supplied with a lockable lever.

Type
Lugged & Tapped
Size & Connections
DN50 to DN250 • Wafer – PN16 Flange
Duty
Gas
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • NBR Liner
Pressure Rating
PN16
Temperature
-20°C to 100°C
Compliance & Approvals
BSI Gas Approved • M9 Specifications T/SP/PRS/38
Contact UsJV100050 – BSI Gas Approved Ductile Iron Lugged & Tapped Butterfly Valve, NBR Lined - PDF DatasheetISO5211 Pad Mount

JV100050 – BSI Gas Approved Ductile Iron Lugged & Tapped Butterfly Valve, NBR Lined
