Normally Open Solenoid Valves

Normally open solenoid valves are energized to close.

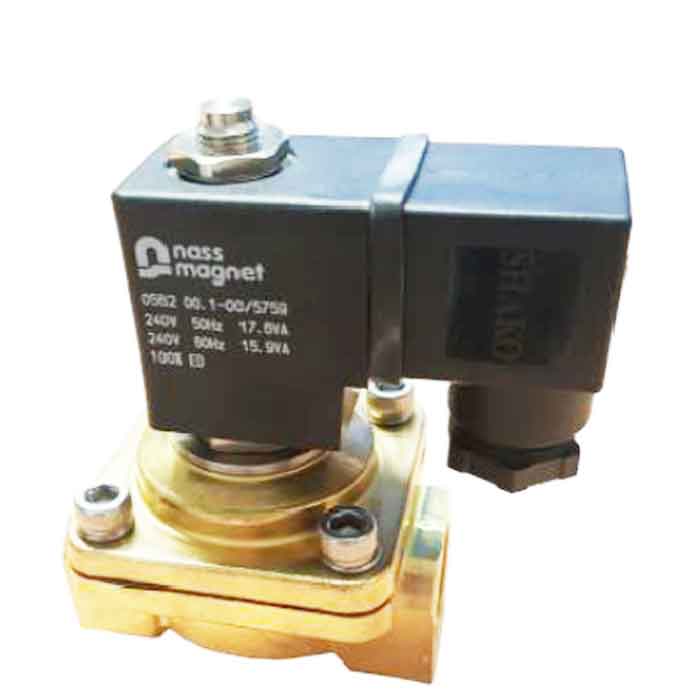

JV230008 – General Purpose Solenoid Valve – 2/2 Normally Open

The JV230008 is a direct acting general purpose solenoid valve suitable for air, water and light oils up to 50 centistokes. The valve is supplied with NBR seals and gaskets as standard with the option of EPDM, FKM and HNBR on request. This two way valve is normally open and energised to close.

Type
2/2 • Normally Open • Direct Acting (No minimum pressure required)
Size & Connections
10mm (3/8″) to 25mm (1″) BSP Female
Duty
General Purpose
Materials
Brass Body • Stainless Steel Internals • NBR Seals (EPDM, FKM & HNBR on request)
Pressure Range
Up to 16 Bar (dependent on size, coil & voltage)
Temperature Range
NBR : 0 to 80°C • FKM : 0 to 120°C • EPDM : 0 to 150°C
Voltage Options
AC : 12, 24, 110V, 230V, 380V (50/60 Hz) • DC : 12V, 24V, 48V, 110V, 220V
Contact UsJV230008 - General Purpose Solenoid Valve - 2/2 Normally Open - PDF Datasheet

JV230008 - General Purpose Solenoid Valve - 2/2 Normally Open

JV230009 – General Purpose Solenoid Valve – 2/2 Normally Open

The JV230009 is a servo assisted general purpose solenoid valve suitable for air, water and light oils up to 50 centistokes. The valve is supplied with NBR seals and gaskets as standard with the option of EPDM, FKM, FFKM and HNBR on request. This two way valve is normally open and energised to close.

Type
2/2 • Normally Open • Direct Acting (No minimum pressure required)
Size & Connections
10mm (3/8″) to 80mm (3″) BSP Female
Duty
General Purpose
Materials
Brass Body • Stainless Steel Internals • NBR Seals (others on request)
Pressure Range
0.5 to 10 Bar (0.3 Bar minimum for 65mm & 80mm)
Temperature Range
NBR : 0 to 80°C • FKM : 0 to 120°C • EPDM : 0 to 120°C
Voltage Options
AC : 24, 110V, 230V, 380V (50/60 Hz) • DC : 12V, 24V, 48V, 110V, 220V
Contact UsJV230009 - General Purpose Solenoid Valve - 2/2 Normally Open - PDF Datasheet

JV230009 - General Purpose Solenoid Valve - 2/2 Normally Open

238 – Asco Stainless Steel Solenoid Valve – 2/2 Normally Closed/Open

The 238 stainless steel general purpose solenoid valve is manufactured to a high standard by Asco, suitable for air, water and light oils up to 37 centistokes. It is pilot operated with a floating diaphragm and requires a minimum differential pressure to operate.

Type
2/2 • N/C or N/O • Pilot Operated, Floating Diaphragm  (Min. pressure required)
Size & Connections
10mm (3/8″) to 25mm (1″) BSP Female
Duty
General Purpose
Materials
Stainless Steel Body & Internal Parts • FPM Seals & Gaskets (EPDM option)
Pressure & Temperature Range
0.35 to 12 Bar (dependent on size & voltage) • -20 to 85°C
Voltage Options
AC : 24, 48V, 115V, 230V (50 Hz) • DC : 24V, 48V
Compliance & Approvals
IEC 335 • IP65
Part Numbers – N/C
SCG238C101V • SCG238C102V • SCG238C103V • SCG238C104V
Part Numbers – N/O
SCG238C105V • SCG238C106V • SCG238C107V • SCG238C108V
Contact Us238 - Asco Stainless Steel Solenoid Valve - 2/2 Normally Closed/Open - PDF DatasheetManufactured by Asco

238 - Asco Stainless Steel Solenoid Valve - 2/2 Normally Closed/Open
