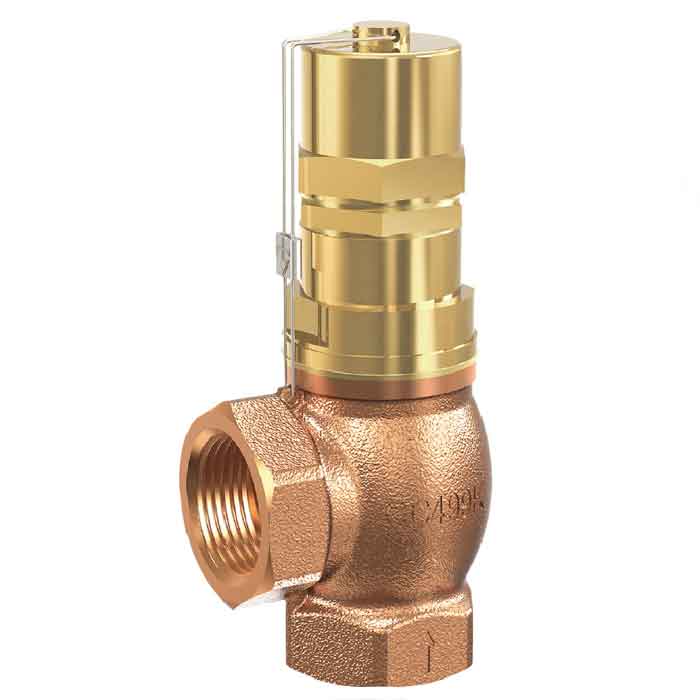

618 – Goetze Side Discharge Bronze Overflow & Pressure Control Valve

The 618 overflow and pressure control valve is designed for pump protection and bypass control applications. User pressure adjustment is achievable on-site or this valve can be set to your requirements with a certificate confirming lift pressure at no additional cost.

Type
Side Discharge • Overflow & Pressure Control • Gas Tight Dome
Size & Connections
10mm (3/8″) to 50mm (2″) BSP
Duty
Air • Inert Gases • Oil • Steam • Water
Materials
Bronze Body • PTFE Disc (NBR & FKM option)
Set Pressure Range
0.2 to 0.8 bar • 0.5 to 12 bar • 12 to 20 bar (PTFE disc only)
Temperature
PTFE Disc : -60°C to 225°C • NBR Disc : -30°C to 130°C •  FKM Disc : -20°C to 200°C
Compliance & Approvals
Lloyds, DNV, BV, ABS & GL Type Approved
Buy 618 – Goetze Side Discharge Bronze Overflow & Pressure Control Valve618 – Goetze Side Discharge Bronze Overflow & Pressure Control Valve - PDF DatasheetGoetze Valves
