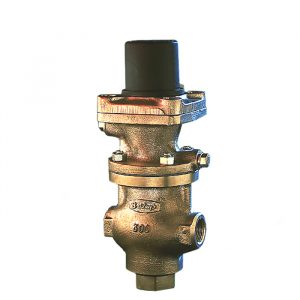

JV140001 – Ductile Iron Pressure Reducing Valve for Steam, Air & Neutral Gases



An economical alternative option for the Spirax Sarco BRV, it’s a compact direct-acting pressure reducing valve which is suitable for steam, air and neutral gases.



Type
Direct-Acting
Size & Connections
15mm (1/2″) to 25mm (1″) • BSP Female
Duty
Air • Neutral Gases • Steam
Materials
Ductile Iron Body • Stainless Steel Bellows, Valve, Seat & Spring
Maximum Upstream Pressure
17 Bar
Downstream Pressure Range
0.14 to 8.6 Bar
Temperature
0°C to 210°C
Compliance & Approvals
3.1 Material Cert (on request)
JV140001 - Pressure Reducing Valve - Steam, Air & Neutral Gasses



Starting at: £225.72

Clear
SKU: JV140001 - Pressure Reducing Valve - Steam, Air & Neutral Gasses Category:
