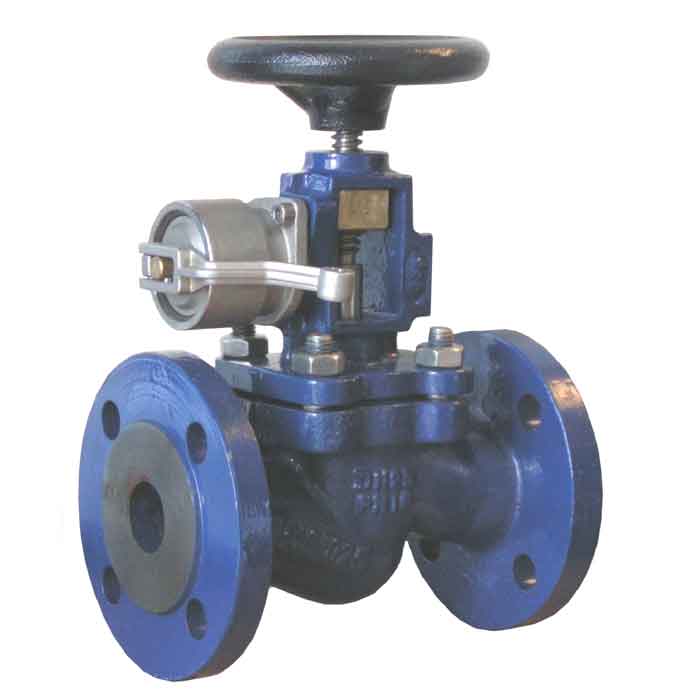

JV360001 – Ductile Iron Straight Pattern Quick Closing Valve

Ductile iron, straight pattern quick closing valve with a pull-type release cylinder which can be controlled by mechanical, hydraulic or pneumatic transmission.  Lloyds, BV, DNV, Germanischer Lloyds inspection can be arranged.

Type
Straight Pattern • Pull Release Cylinder
Size & Connections
DN15 to DN200 • PN16/10 Flange (others on request)
Duty
Fuel Systems
Materials
Ductile Iron Body & Bonnet • Stainless Steel Disc, Seat Ring & Stem • FKM O-ring
Pressure Rating
DN15-150:- PN16 • DN200:- PN10
Temperature
Up to 140°C
Compliance & Approvals
Length to DIN 3202 F1 • 3.1 & 3.2 Material Certification (available on request)
