Self Closing Valves

JV1003 – Self Closing Valve

Bronze Spring Loaded Self-Closing Valve

Economic self closing valve with a spring return mechanism. Used in applications where positive return to the shut-off position is required after the valve is manually opened.

Size : ½” (15mm) to 2″ (50mm)

Connection : BSP

Maximum Pressure / Temperature : 16 Bar / 120°C

Operation  : Manual Pedal

JV1003 Self Closing Valve Datasheet

JV1003 Self Closing Valve

261001/3 – Self-Closing Valve

Ductile Iron Straight Pattern Spring Loaded Self-Closing Valve

Self-closing valves are mainly used for drainage of fuel-oil and diesel-oil tanks. The valve is normally closed when not operated.

Size : ½” (15mm) to 4″ (100mm)

Connection : Flanged – BS4504 PN16 (others on request)

Maximum Pressure / Temperature : 16 Bar / 90°C

Operation  : Manual Lever

260102 Self Closing Valve Datasheet

261001/3 Quick Closing Valve

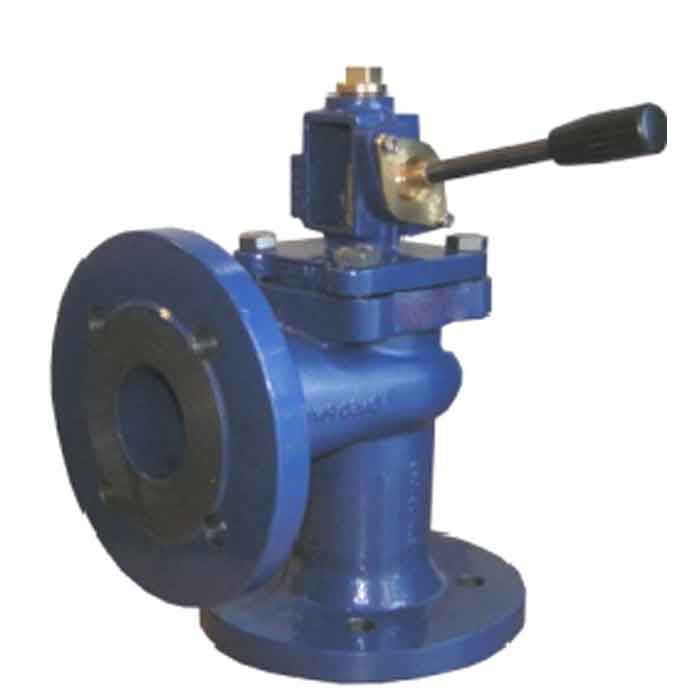

261002/4 – Self Closing Valve

Ductile Iron Angled Pattern Spring Loaded Self-Closing Valve

Self-closing valves are mainly used for drainage of fuel-oil and diesel-oil tanks. The valve is normally closed when not operated.

Size : ½” (15mm) to 4″ (100mm)

Connection : Flanged – BS4504 PN16 (others on request)

Maximum Pressure / Temperature : 16 Bar / 90°C

Operation  : Manual Lever

260102/4 Self Closing Valve Datasheet

261002/4 Self Closing Valve
